Muratec

Maximum Chuck Size

5" / ø 135 mm

Number of Turret Stations

10

Axes

X: 155 mm / 15 m/min · Z: 170 mm / 15 m/min · Y: ±25 mm / 12 m/min

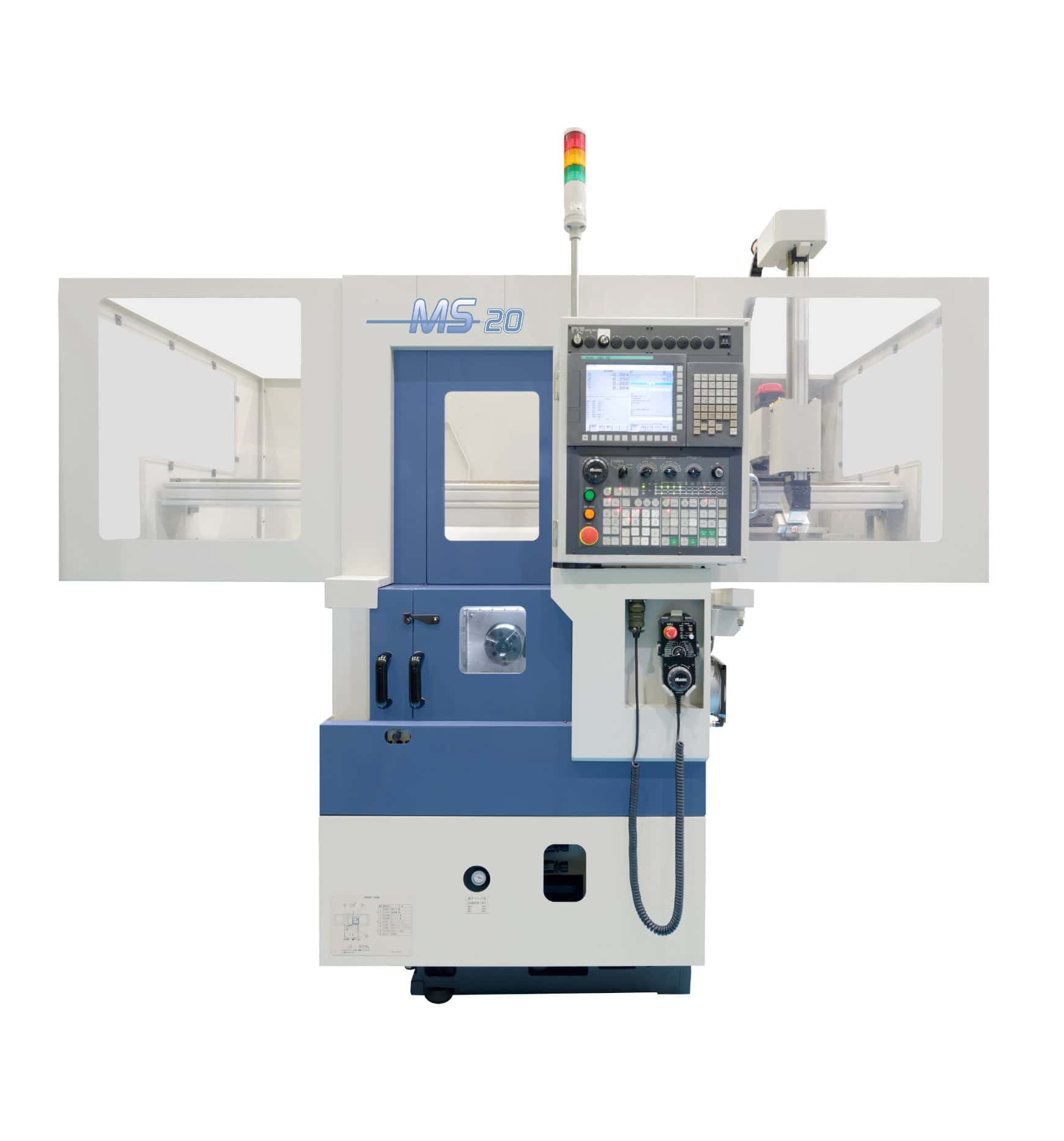

Cutting-edge single-spindle lathe designed for multitasking precision and automation. Equipped with an automated gantry, configurable with live tool and Y-axis. Accommodates parts up to 50 mm diameter × 90 mm length. Ideal for automotive and machine shops requiring extreme precision.

Groundbreaking single-spindle CNC Turning Center with Y-axis milling and 8,000 rpm live tool spindle motor. Compact footprint with built-in gantry loader automation. Suited for high-mix, low-volume production.

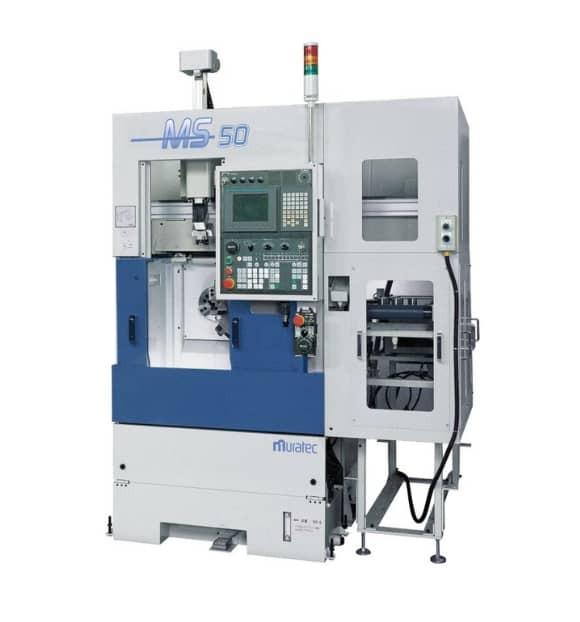

Exceptional rigidity and high precision processing. Super high-speed loader for quick load/unload. Companion model MS50GL handles larger workpieces (ø80 mm, length 60 mm, up to 2.0 kg × 2).

Maximum Chuck Size

8"

Number of Turret Stations

8

Maximum Spindle Speed

4,500 rpm

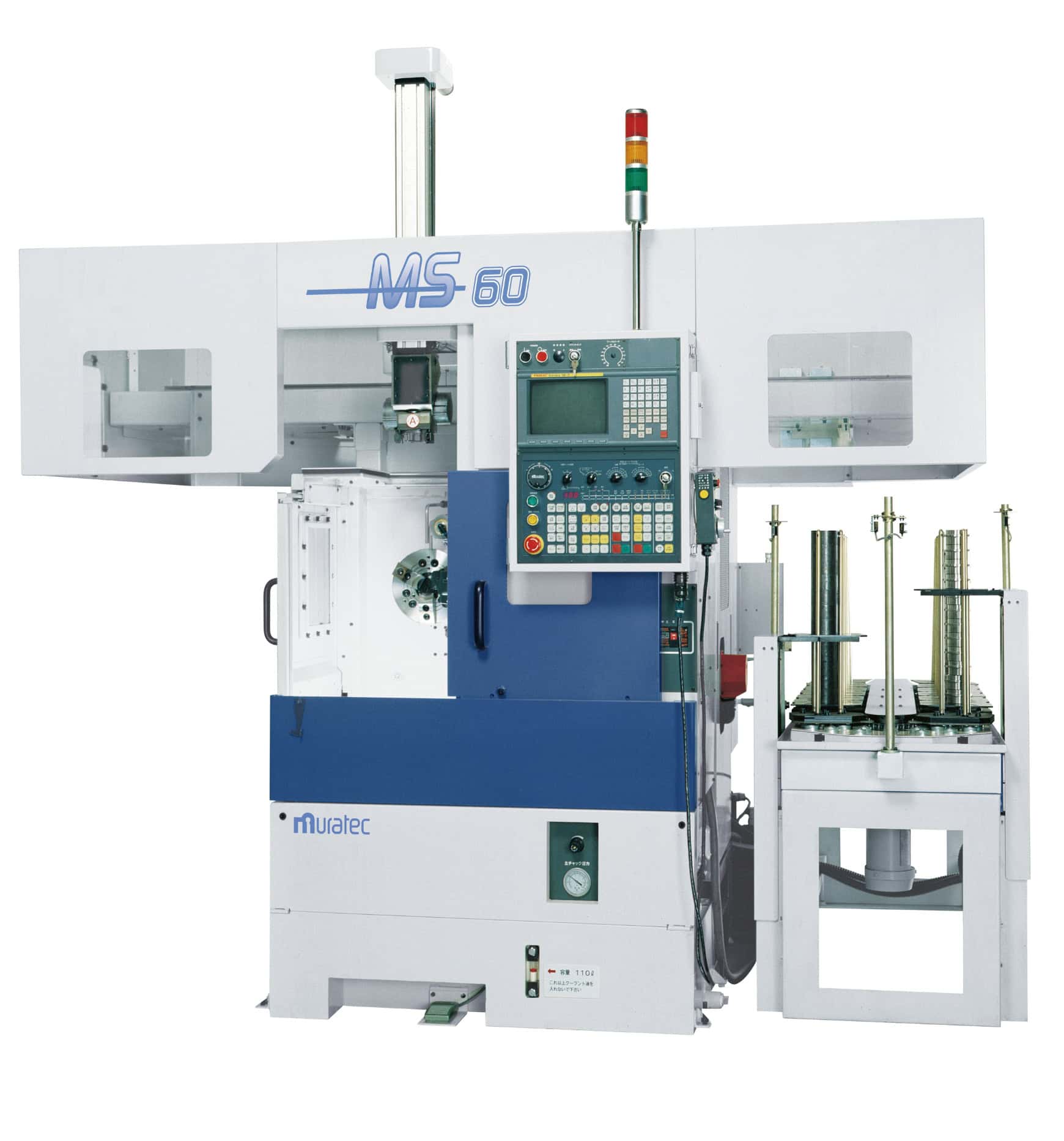

Compact, high-speed single spindle CNC turning lathe for high-volume production. Ideal third operation solution when combined with MW Series. MS60GII incorporates carbon fiber gantry rails, more rigid turret, and reduced gantry vibration.

Single spindle CNC lathe for automated line systems. Automated gantry loader for seamless material handling. Accommodates large parts in a compact footprint. Integrates with MW Series for high-volume production and line planning.

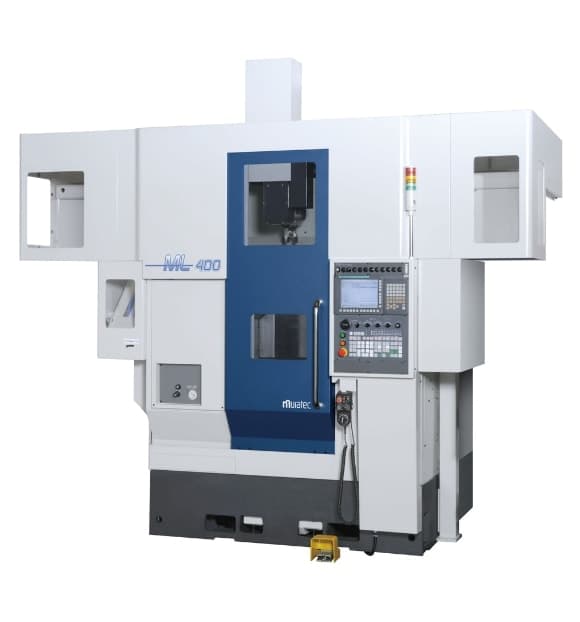

Super compact shaft lathe for automated turning of shaft-type parts up to 400 mm (15.7") length × 200 mm (7.9") diameter. ML400L handles up to 570 mm (22.4") length. ML400GL adds a high-speed 3-axis CNC gantry loader. Smallest in its class at 1,700 mm width.

Precision single spindle lathe for automated turning of shaft-type parts with tight tolerances. 8-station tool turret and hydraulic actuated tailstock.

Specialty single spindle lathe for automated turning of shaft-type parts with precise tolerances. 10-station tool turret and hydraulic actuated tailstock.

Single spindle CNC lathe for simultaneous turning of complex parts. Two turrets, high-speed capabilities, flexible operation enabling simultaneous cutting with both turrets.

Engineered for high-speed cycle time reduction. Parts delivered in 3 seconds or less. Patented iFLiPP automated orientation feeds workpiece in 1.9 seconds. Gang-type tool plate, integrated workpiece ejector, servo-controlled high-speed swing-type loader.

Optimal solution for precise turning with minimal thermal displacement. Energy-saving compact size. Live tooling and Y-axis milling for limitless production of intricate small parts.

Compact and energy-saving for efficient turning of smaller parts. Faster cycle times via high-speed gantry and quick load/unload. Gang-style tooling block for quick tool changes.

Super-compact twin spindle turning center. High-speed gantry and rapid load/unload operations. Two horizontal spindles and twin four-station tool blocks. Handles slightly larger parts than MW50G.

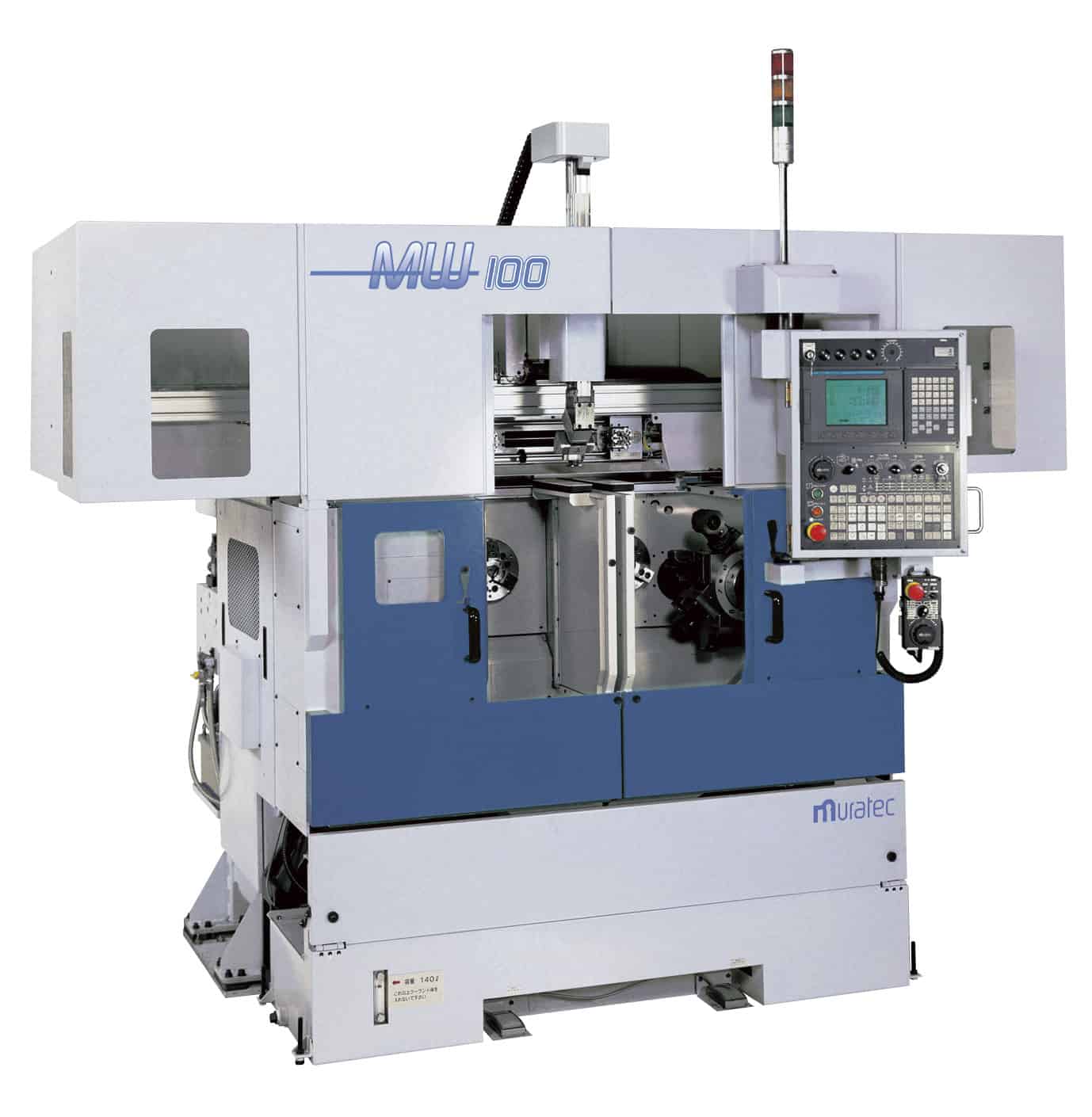

Twin-spindle turning center with outstanding rigidity. Column and turret bar construction. High-speed 3-axis gantry loader achieves load/unload under 5 seconds; parts in as little as 16 seconds. Also available as twin gantry (MW100GT) and live tool configurations.

Maximum Chuck Size

8" / ø 210 mm

Number of Turret Stations

8 × 2 or 12 × 2

Axes

X: 130 mm / 24 m/min · Z: 145 mm / 24 m/min

Self-contained solution with exceptional rigidity. Robust column and turret bar design for heavy-duty part cutting. Configurations include extreme/high precision (EX, HG), twin gantry (GT), and Type II (GII) with carbon fiber gantry rails.

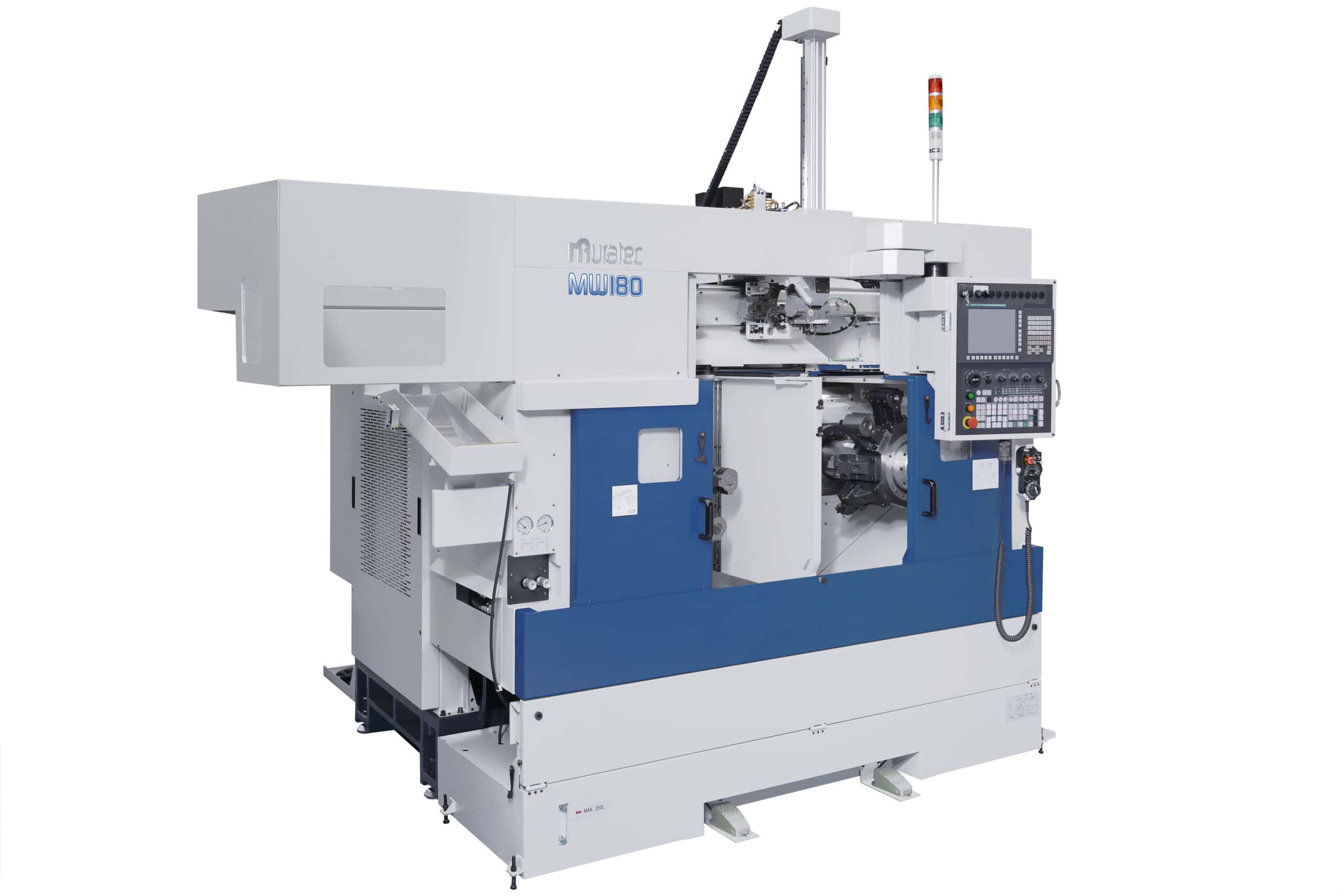

Medium-sized CNC turning center with twin spindles and versatile gantry for diverse part sizes and weights. MW180GL companion model handles larger workpieces.

Maximum Chuck Size

10"

Number of Turret Stations

10 × 2

Maximum Spindle Speed

3,500 rpm

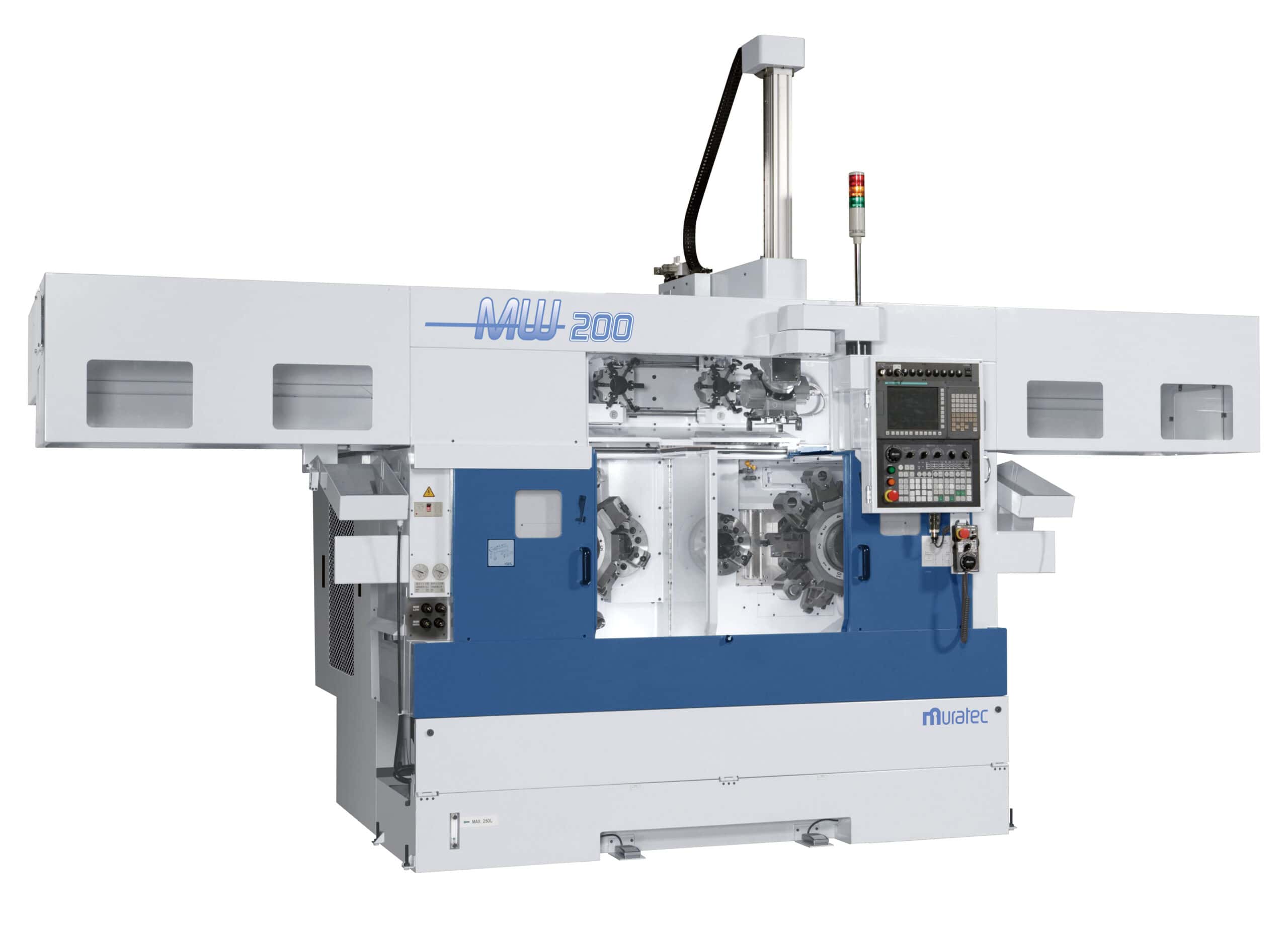

Most popular CNC lathe Muratec sells in North America. High-speed 3-axis gantry loader for swift load/unload. Accommodates simultaneous processes and turnaround applications. Available as Extreme/High Precision (EXG) and twin gantry (GT).

Maximum Chuck Size

10"

Number of Turret Stations

10 × 2

Maximum Spindle Speed

3,500 rpm

10-inch twin spindle automated turning center with live tooling (milling and drilling). Integrated 3-axis gantry robot loader. Dual spindles with automatic part turnaround. Suitable for low- and high-volume production.

Maximum Chuck Size

8"

Number of Turret Stations

T2: Upper 15, Lower 12 · T3: Upper 15 × 2, Lower 12

Maximum Spindle Speed

4,000 rpm

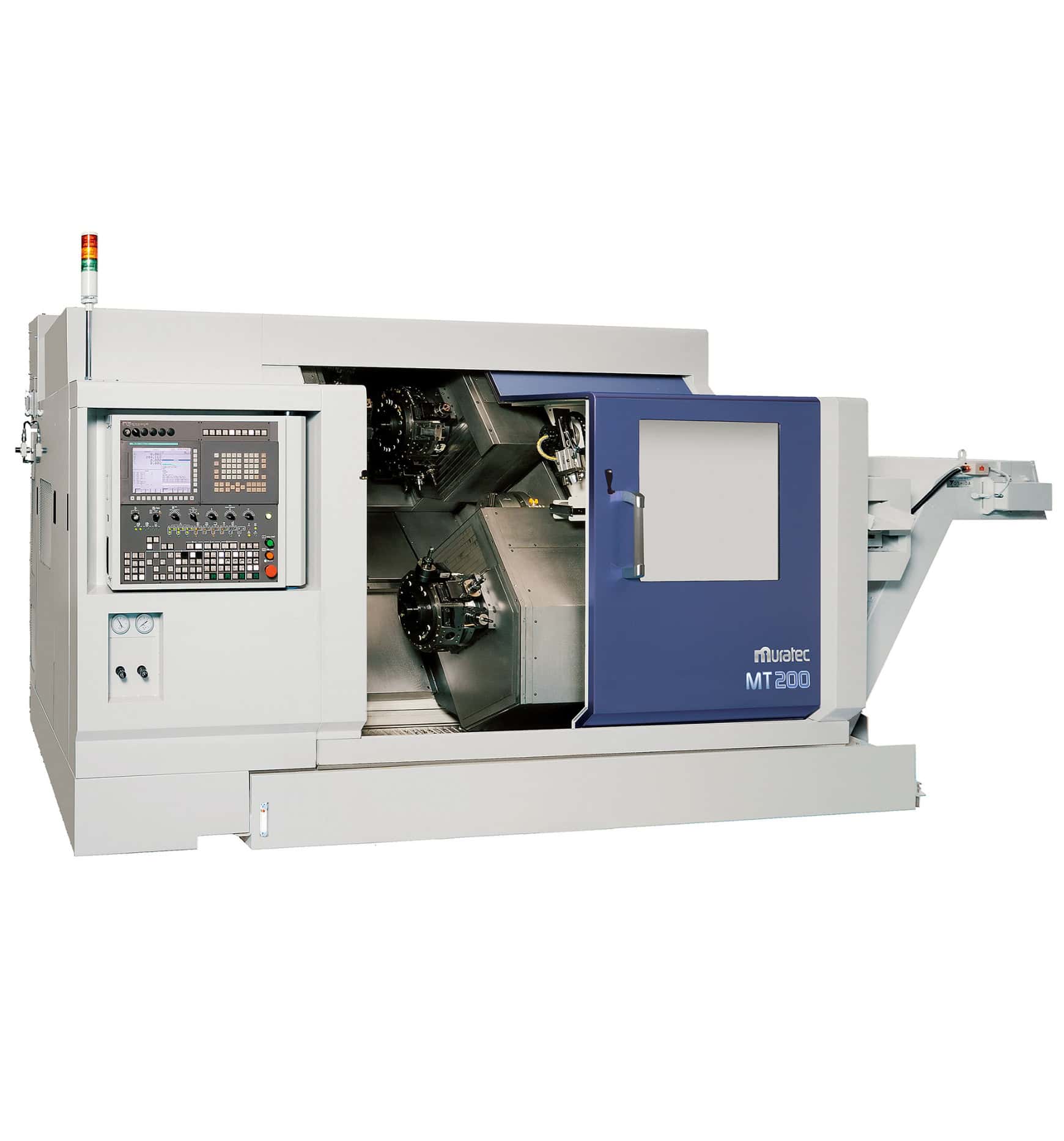

Highly versatile multi-tasking turning machine with twin spindles, three turrets, and a gantry loader. Cut more than one part simultaneously. Two tools in a single cut using upper and lower turrets. Configurations include twin gantry, 2 and 3 turret options, and Intelligent Unloader variants with wash station. Handles larger, heavier parts than MT100 series.
