Behringer

Cutting range 90° round

260 mm

Cutting range 90° flat

300 x 260 mm

Smallest dimension to be sawn round

10 mm

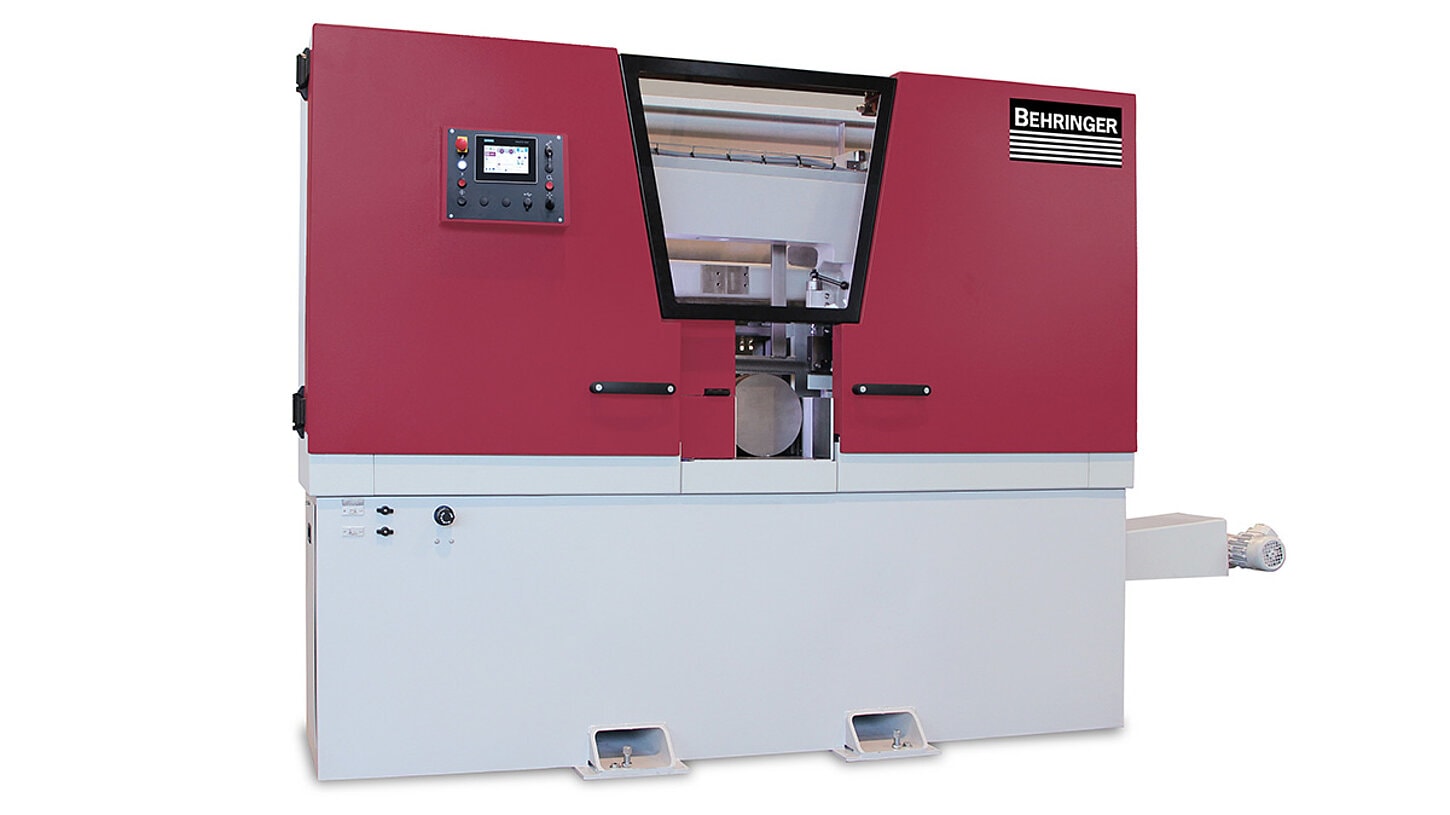

The automatic band saw HBE261A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE261A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

Cutting range 90° round

320 mm

Cutting range 90° flat

520 x 320 mm

Smallest dimension to be sawn round

10 mm

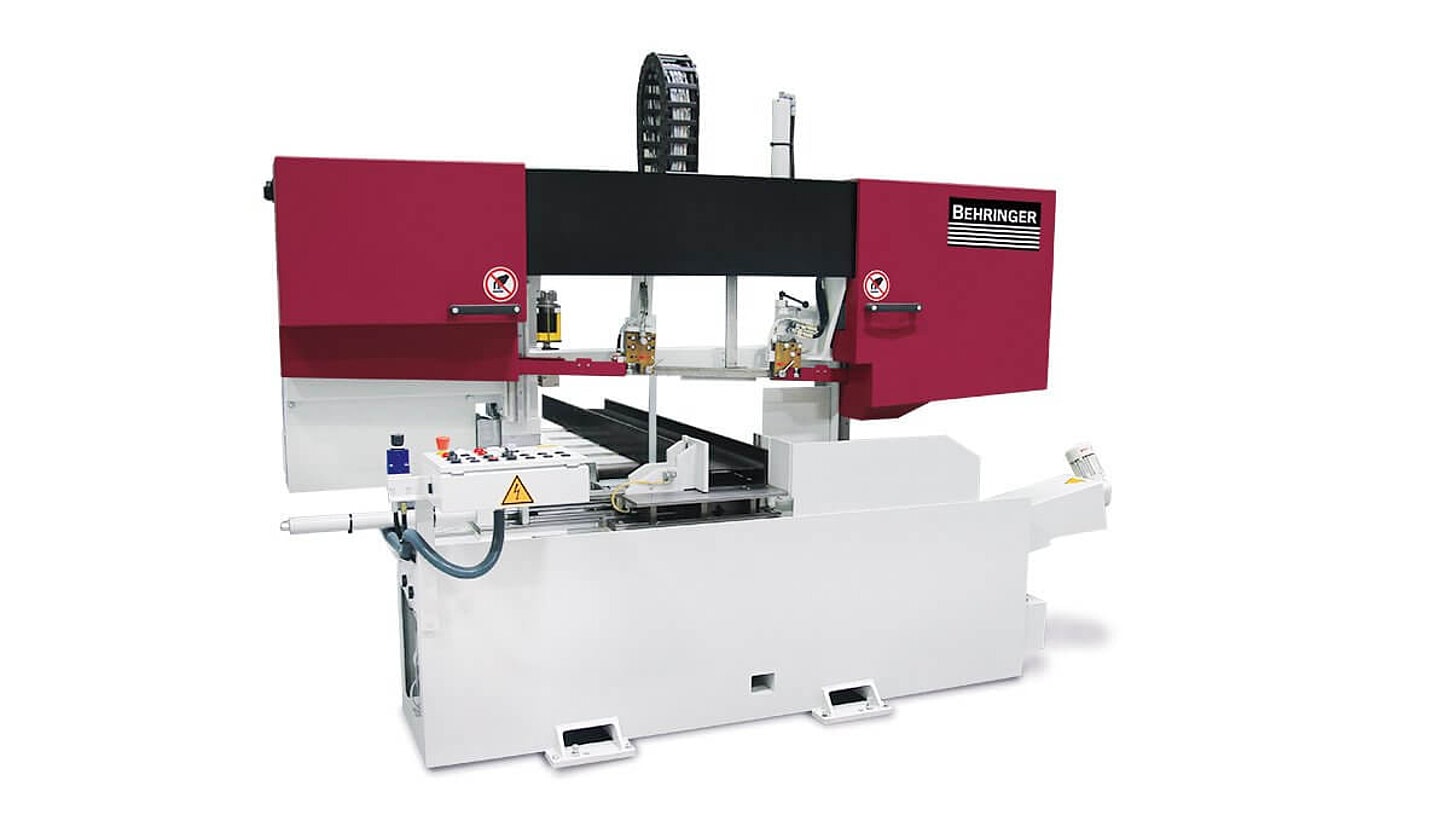

The horizontal bandsaw HBE320-523 perfectly combines the advantages of modern high-performance machines for individual sawing tasks with proven, unique BEHRINGER features. With its extensive range of applications, the band saw reliably covers all the requirements of small and medium-sized workshops. Make your production even more economical with powerful, precise cuts at low cutting costs.

Cutting range 90° round

320 mm

Cutting range 90° flat

350 x 320 mm

Smallest dimension to be sawn round

10 mm

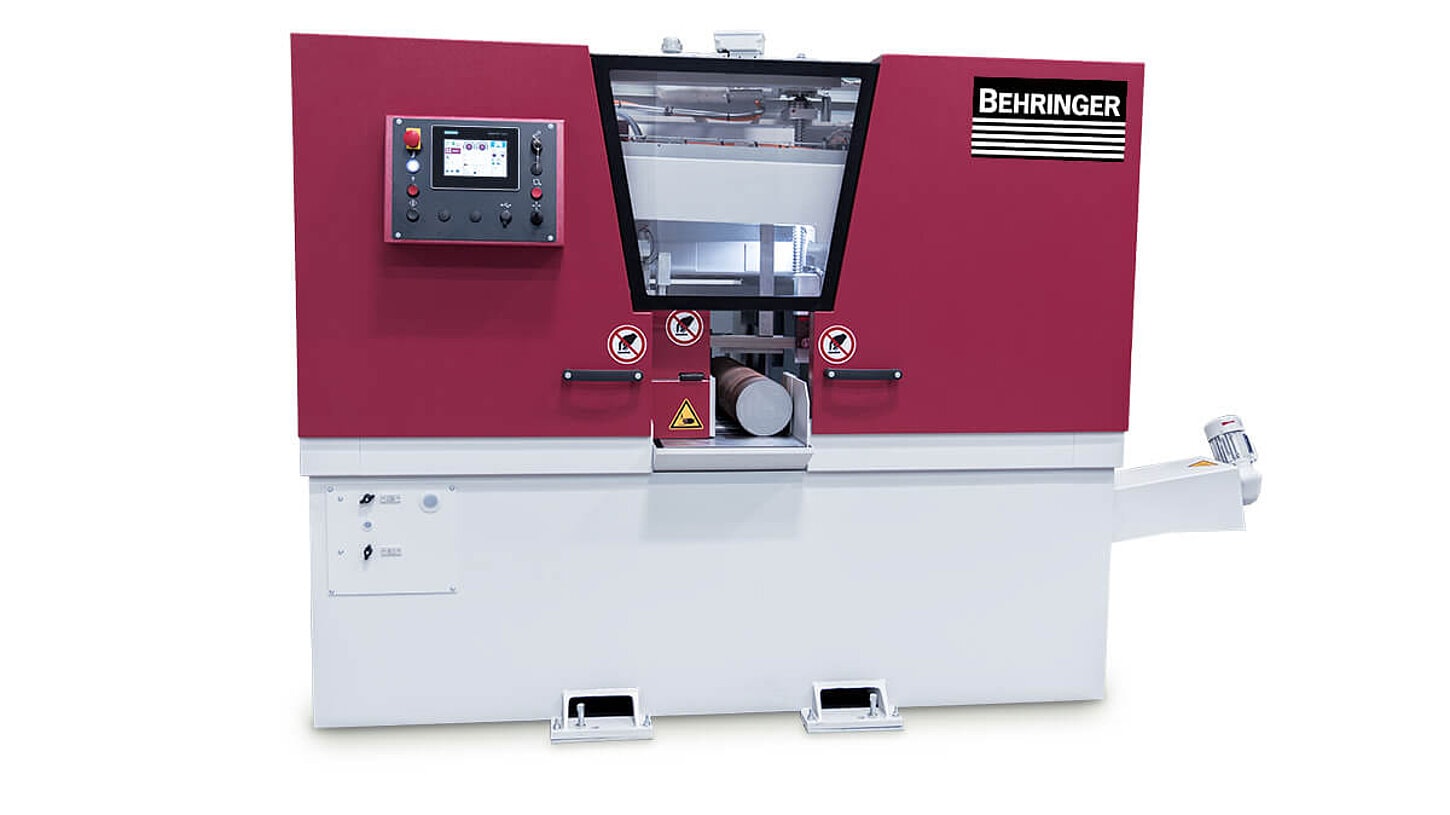

The automatic band saw HBE321A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE321A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

Cutting range 90° round

410 mm

Cutting range 90° flat

510 x 410 mm

Smallest dimension to be sawn round

10 mm

The automatic band saw HBE411A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE411A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

Cutting range 90° round

420 mm

Cutting range 90° flat

700 x 400 mm

Smallest dimension to be sawn round

10 mm

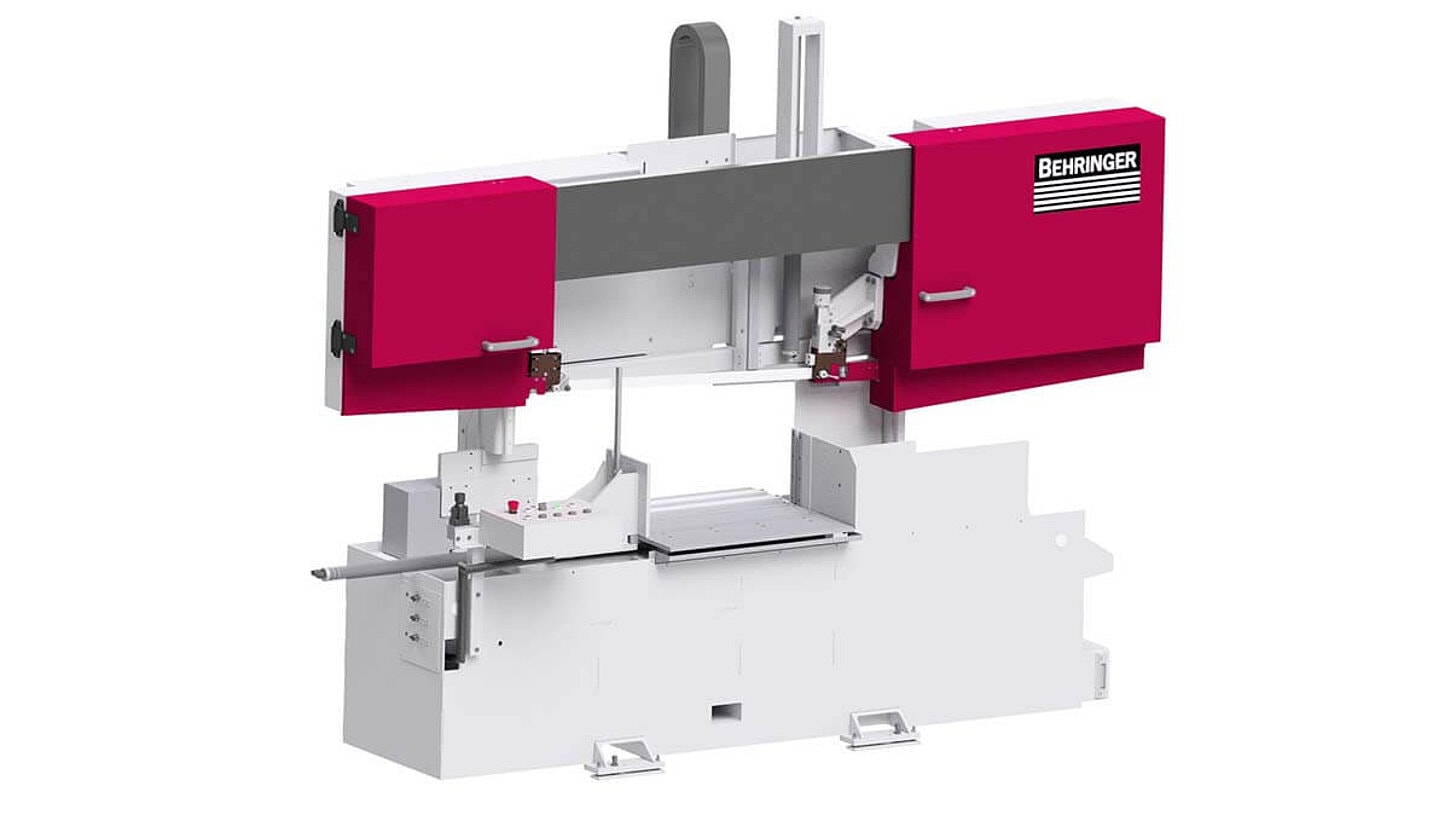

The horizontal bandsaw HBE420-723 perfectly combines the advantages of modern high-performance machines for individual sawing tasks with proven, unique BEHRINGER features. With its extensive range of applications, it reliably covers all the requirements of small and medium-sized workshops. Make your production even more economical with powerful, precise cuts at low cutting costs.

Cutting range 90° round

440 mm

Cutting range 90° flat

440 x 440 mm

Smallest dimension to be sawn round

15 mm

The innovative SpeedCutting technology of the HBM440A high-speed saw series allows process-reliable cutting performance that was previously unthinkable. The HBM440A shows its full potential especially when sawing tool steels to stainless steels or high-alloy materials such as Inconel or Titanium. The production bandsaw thus covers a wide range of applications in industry and the steel trade. Thanks to the combination of a powerful machine base, modern servo technology, innovative cooling system and process-reliable chip disposal, the HBM440A gets the maximum out of the tool used - regardless of whether it is a carbide or bi-metal blade.

Cutting range 90° round

440 mm

Cutting range 90° flat

440 x 440 mm

Smallest dimension to be sawn round

20 mm

The aluminium bandsaw HBM440ALU is specially designed for sawing ingots and billets made of aluminium or comparable non-ferrous metals such as magnesium. They cut quickly, reliably, precisely and with a small kerf, thus contributing to future-proof, resource-saving production. The aluminium saw can be designed to suit the application, from simple automatic machines with chip conveyors to automated, interlinked saw cells with integrated chip extraction.

Cutting range 90° round

500 mm

Cutting range 90° flat

500 x 500 mm

Smallest dimension to be sawn round

100 mm

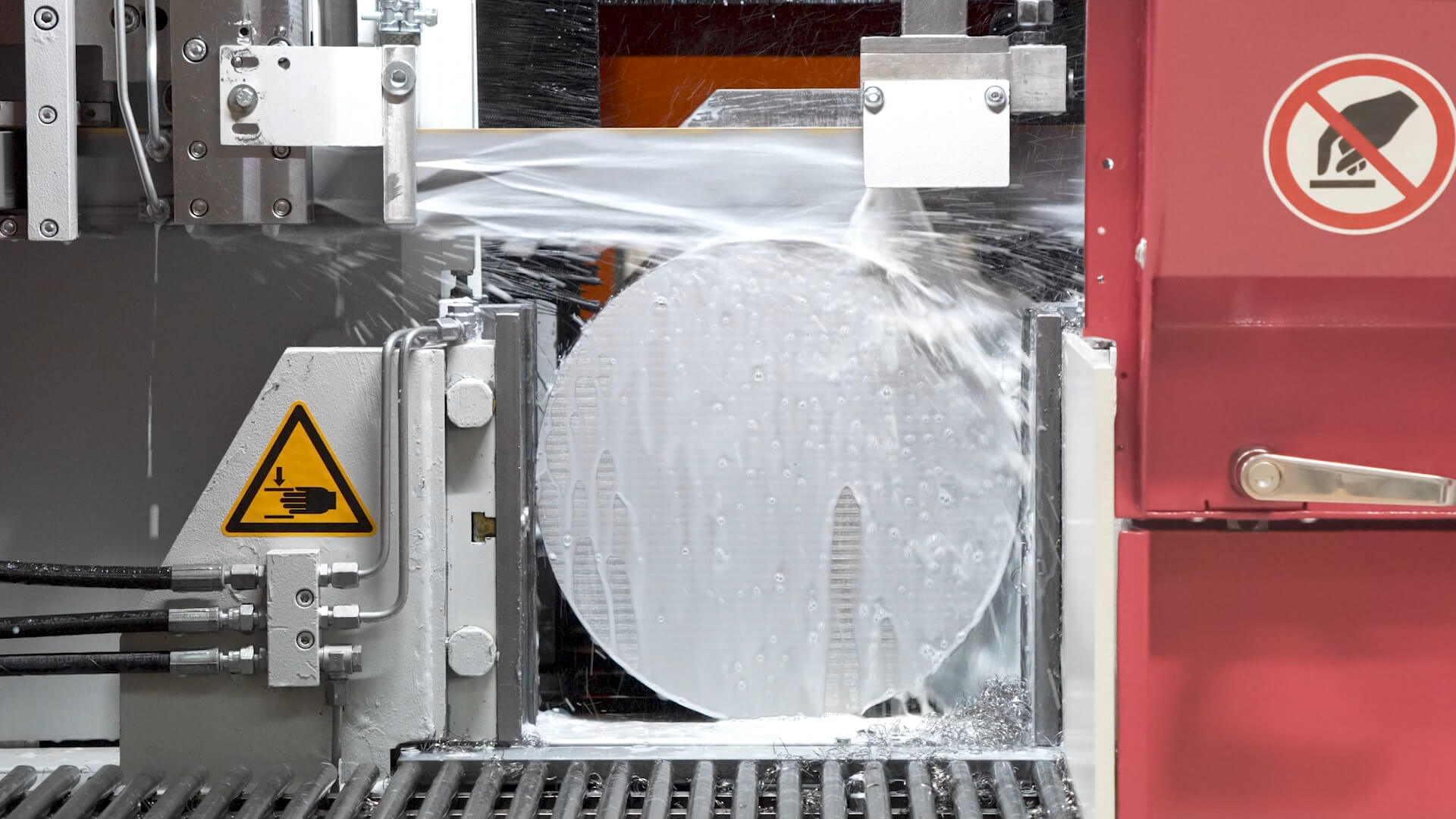

The HBM500SC is the fastest band saw on the market—developed for maximum productivity and precision. With innovative drive technology, SpeedCutting technology, and intelligent control, it combines the speed of a circular saw with the flexibility of a band saw. For those who refuse to compromise when it comes to steel processing.

Cutting range 90° round

510 mm

Cutting range 90° flat

510 x 510 mm

Smallest dimension to be sawn round

10 mm

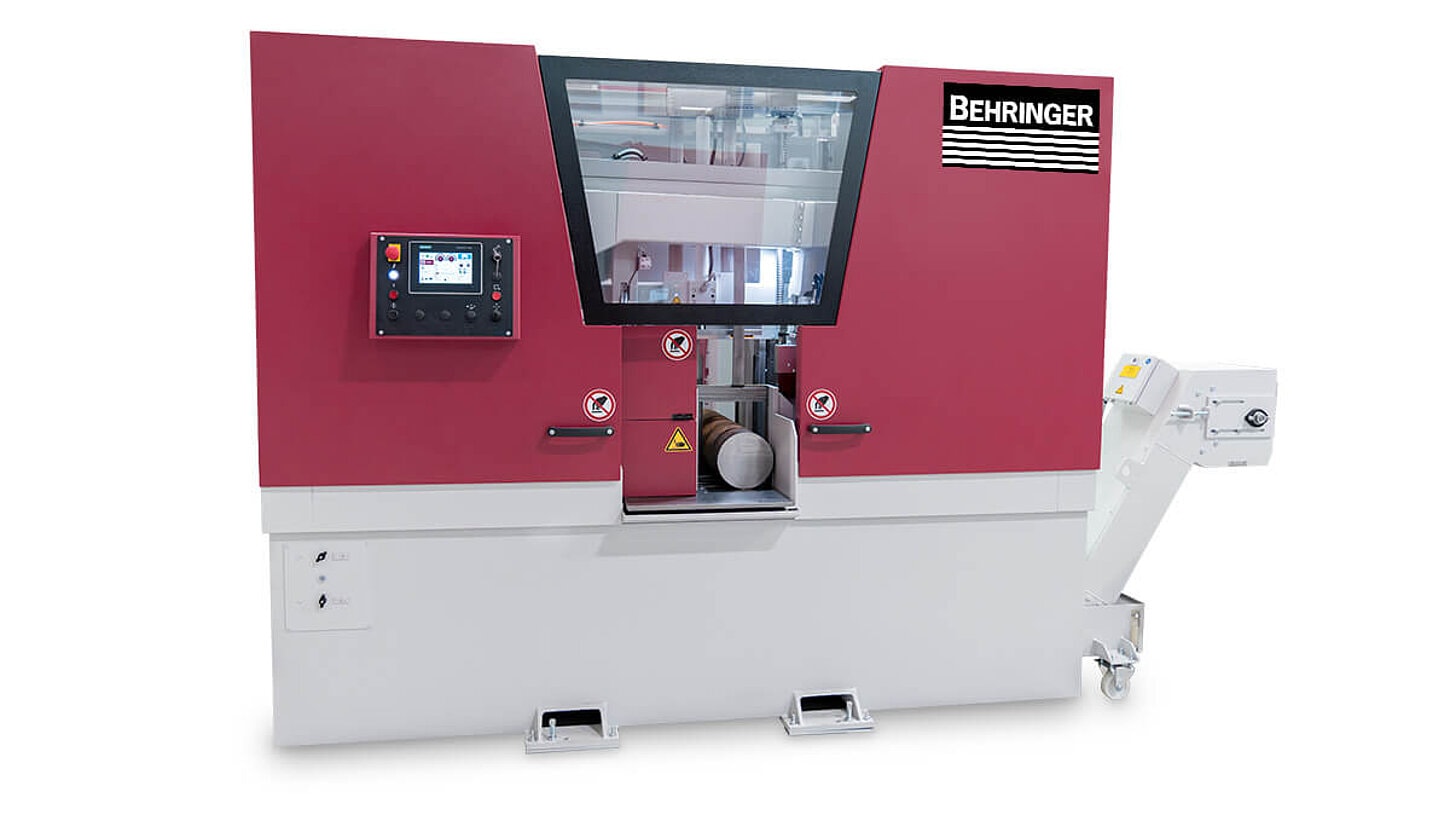

The automatic band saw HBE511A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE511A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

Cutting range 90° round

540 mm

Cutting range 90° flat

630 x 540 mm

Smallest dimension to be sawn round

15 mm

The innovative SpeedCutting technology of the HBM540A high-speed saw series allows process-reliable cutting performance that was previously unthinkable. The HBM540A shows its full potential especially when sawing tool steels to stainless steels or high-alloy materials such as Inconel or Titanium. The production bandsaw thus covers a wide range of applications in industry and the steel trade. Thanks to the combination of a powerful machine base, modern servo technology, innovative cooling system and process-reliable chip disposal, the HBM540A gets the maximum out of the tool used - regardless of whether it is a carbide or bi-metal blade.

Cutting range 90° round

540 mm

Cutting range 90° flat

630 x 540 mm

Smallest dimension to be sawn round

20 mm

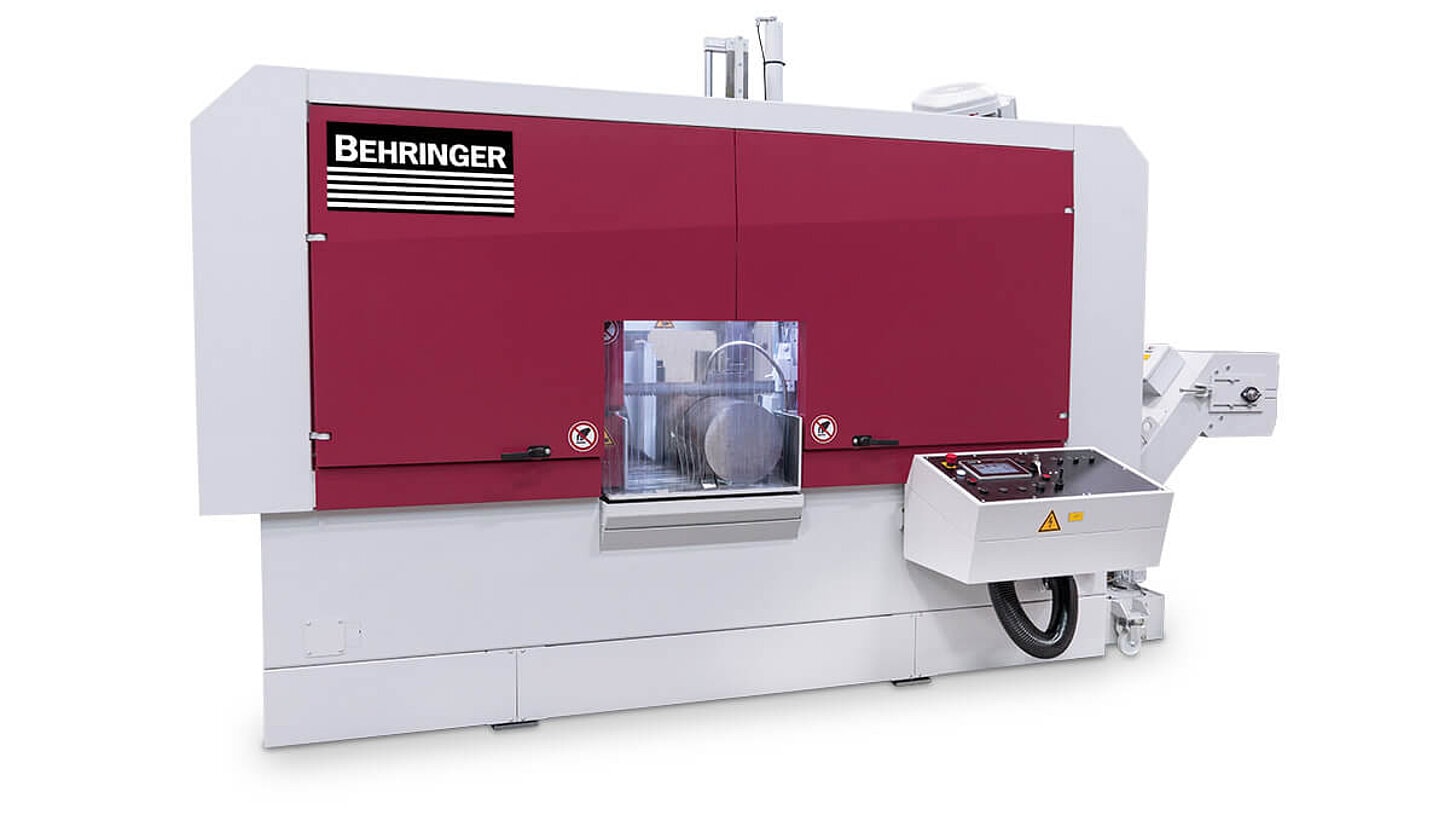

The aluminium bandsaw HBM540ALU is specially designed for sawing ingots and billets made of aluminium or comparable non-ferrous metals such as magnesium. They cut quickly, reliably, precisely and with a small kerf, thus contributing to future-proof, resource-saving production. The aluminium saw can be designed to suit the application, from simple automatic machines with chip conveyors to automated, interlinked saw cells with integrated chip extraction.

Cutting range 90° round

560 mm (option 610 mm)

Smallest dimension to be sawn round

20 mm

Smallest dimension to be sawn flat

20 x 8 mm

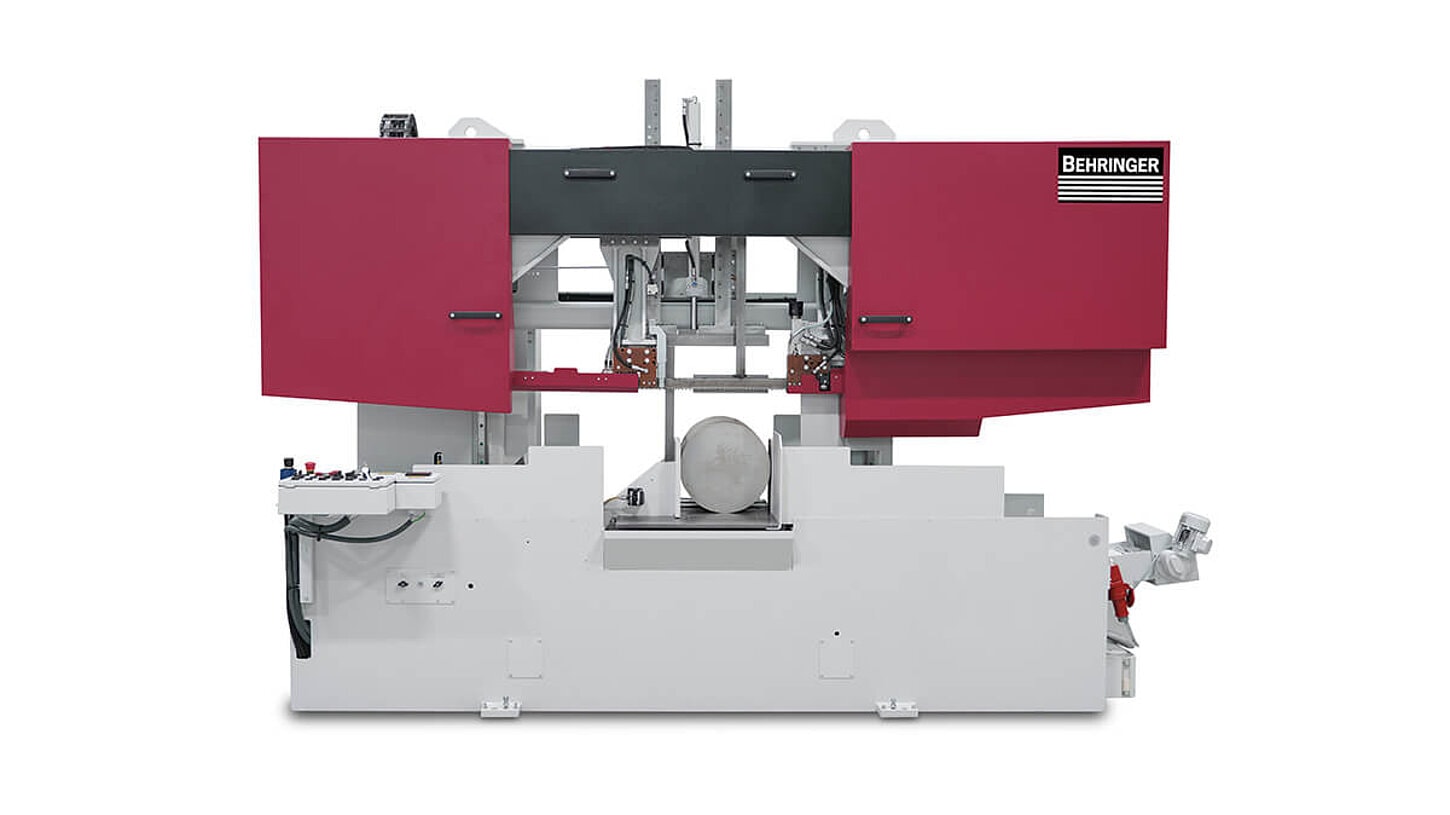

The HBE560 is a modern, semi-automatic high-performance horizontal bandsaw in a robust design for the economical cutting of solid metals of all grades and large pipes. Especially for single cuts or difficult material geometries, positioning of the parts on sight by means of a crane or roller conveyor and line laser is recommended. For machining large pipes, the HBE560 can be equipped with a measuring system. The metal cutting bandsaw HBE560 impresses with its solid, indestructible basic construction and its high cutting performance, which also allows the economical cutting of difficult-to-machine materials such as high-alloy stainless steels, Inconel or titanium in large diameters with carbide saw blades. The HBE560 makes your production even more economical with high-performance, precise cuts and low cutting costs at the same time.

Cutting range 90° round

560 mm (option 610 mm)

Smallest dimension to be sawn round

20 mm

Smallest dimension to be sawn flat

20 x 20 mm

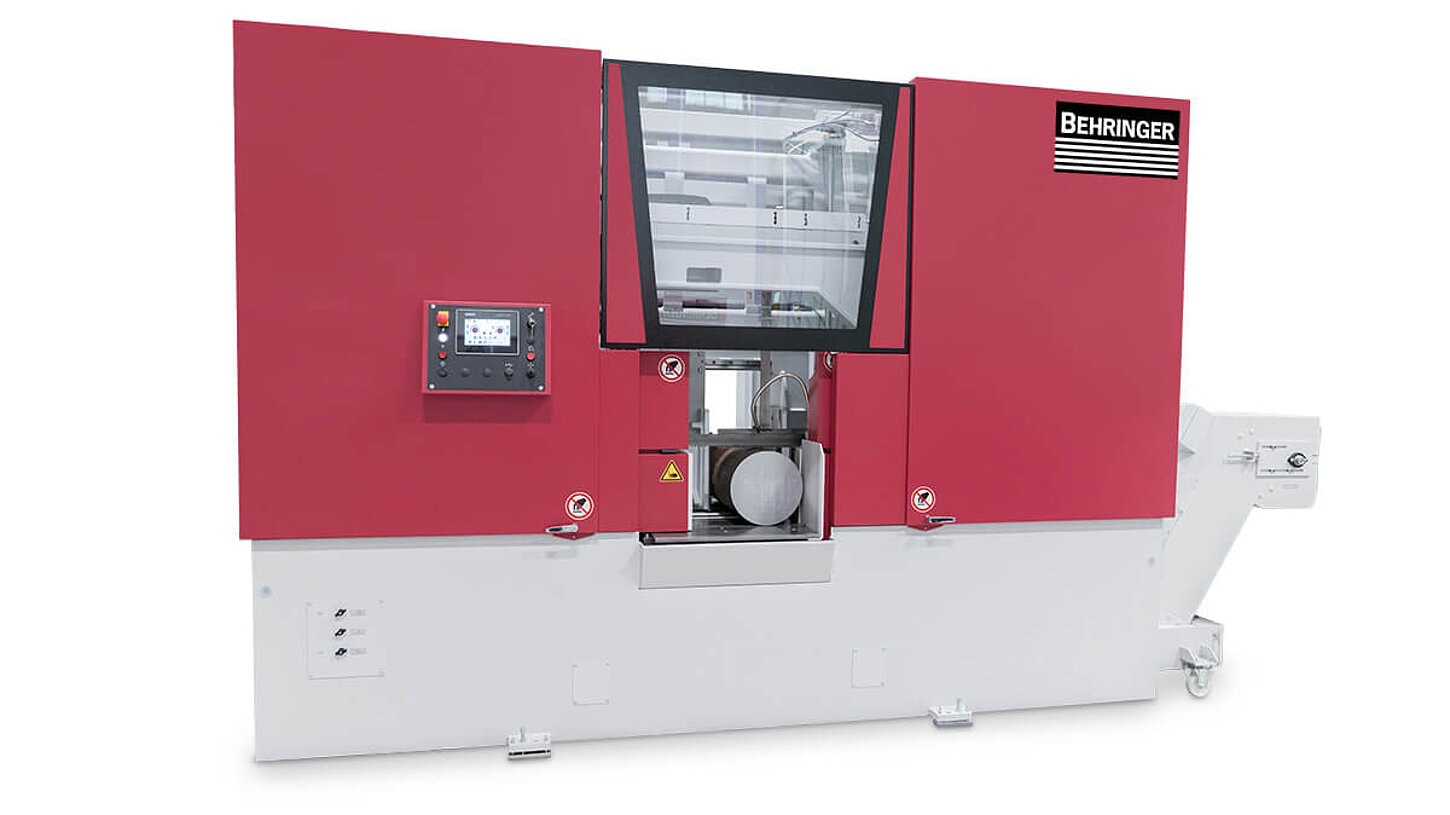

The high-performance industrial saw HBE560A Performance is designed for demanding applications in steel trade, industry and metal production. Its heavy, robust design, use of the latest servo technology and its precise guide system provide the prerequisites for economical use of carbide and bi-metal saw blades. Especially when cutting tool steels, stainless steels or high-alloy materials, the production band saw HBE560A Performance shows its strengths.

Cutting range 90° round

610 mm

Cutting range 90° flat

1,250 x 610 mm

Smallest dimension to be sawn round

30 mm

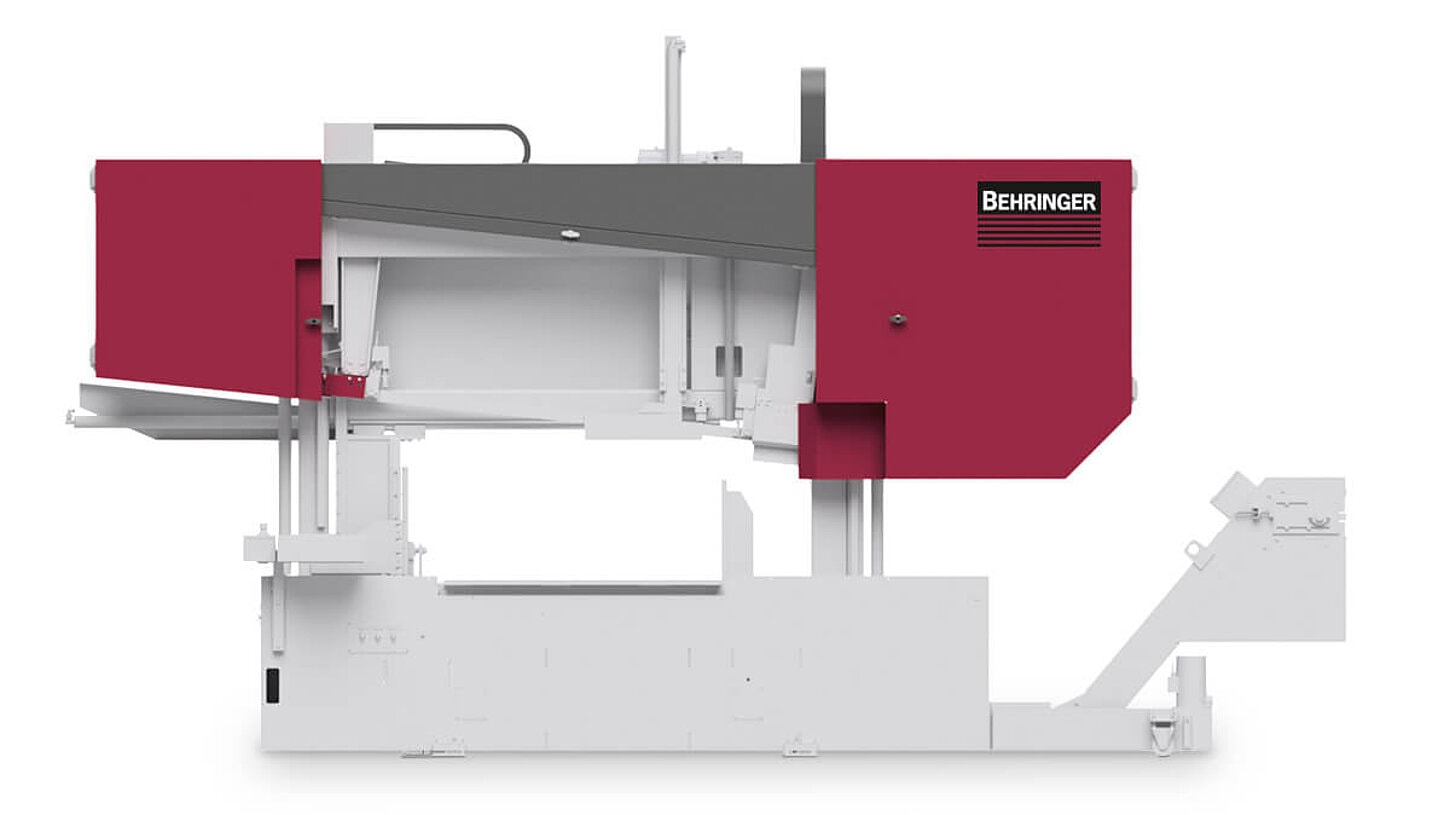

The HBE610-1256 is a modern, semi-automatic horizontal band saw, which is suitable for sawing structural steel, profiles and plates in single cuts due to its robust design. Features such as the saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are fitted as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands. Accordingly, with its extensive range of applications, the saw reliably covers all the requirements of small and medium-sized businesses. In short, the HBE610-1256 metal cutting bandsaw makes your production even more economical with high-performance, precise cuts at low cutting costs.

Cutting range 90° round

660 mm

Cutting range 90° flat

710 x 660 mm

Smallest dimension to be sawn round

20 mm

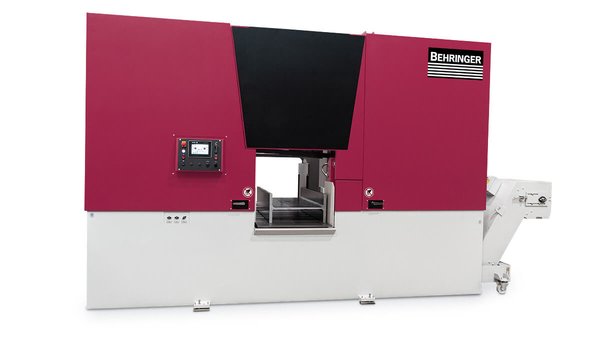

The automatic saw HBE663A Performance is the specialist of the HBE Performance series for sawing material bundles. Due to its double vice and the retracting fixed jaws, even strapped bundles can be positioned precisely. In combination with the robust vertical clamping devices, the bundle is securely clamped during sawing. The industrial saw's feeding gripper can be configured in lengths of 1,500 mm and 3,000 mm for sawing long cut-off lengths.

Cutting range 90° round

800 mm

Cutting range 90° flat

800 x 800 mm

Smallest dimension to be sawn round

50 mm

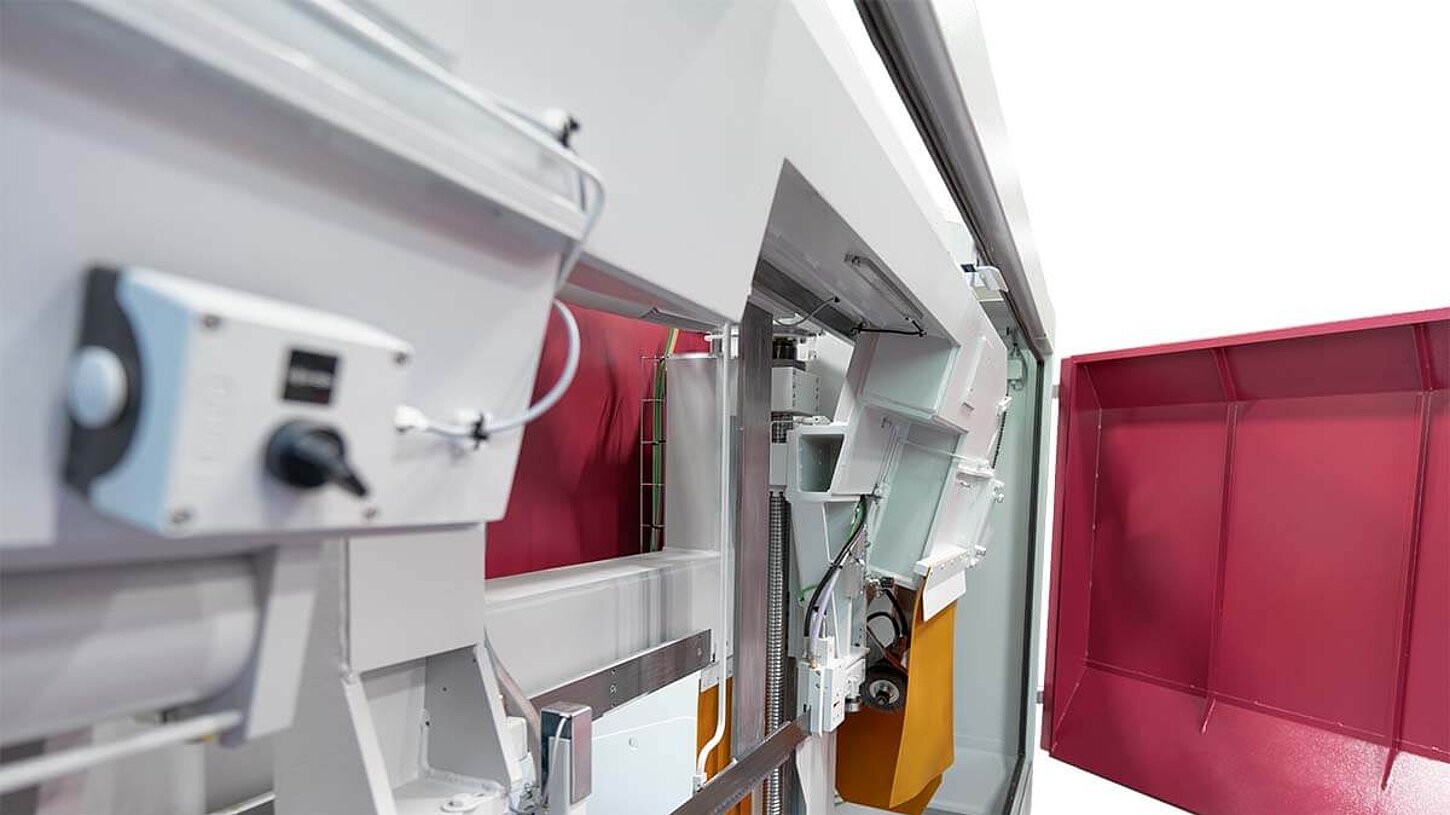

The innovative SpeedCutting technology of the HBM800A high-speed saw series allows process-reliable cutting performance that was previously unthinkable. The HBM800A shows its full potential especially when sawing tool steels to stainless steels or high-alloy materials such as Inconel or Titanium. The production bandsaw thus covers a wide range of applications in industry and the steel trade. Thanks to the combination of a powerful machine base, modern servo technology, innovative cooling system and process-reliable chip disposal, the HBM800A gets the maximum out of the tool used - regardless of whether it is a carbide or bi-metal blade.

Cutting range 90° round

800 mm

Cutting range 90° flat

800 x 800 mm

Smallest dimension to be sawn round

50 mm

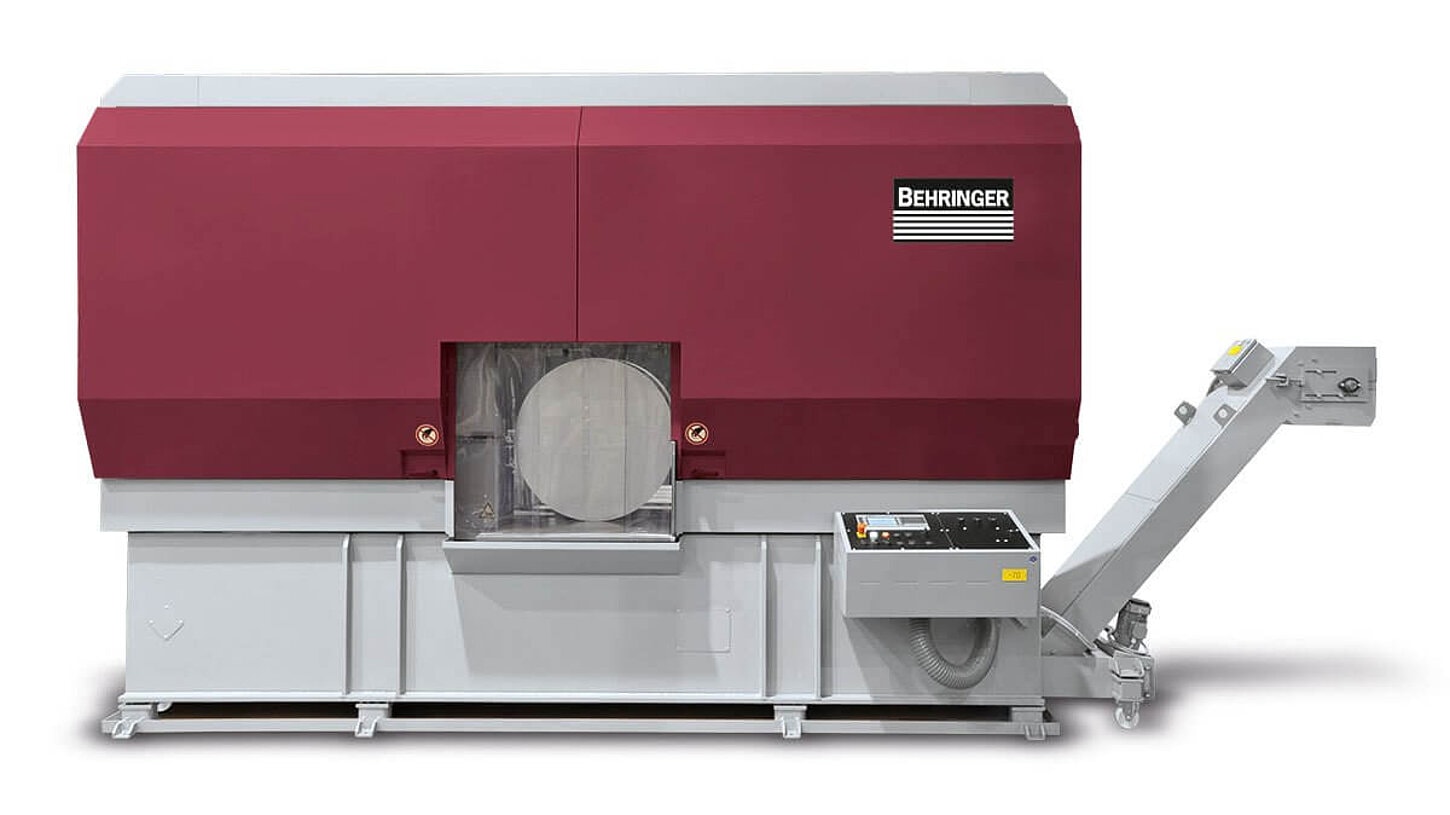

The aluminium bandsaw HBM800ALU is specially designed for sawing ingots and billets made of aluminium or comparable non-ferrous metals such as magnesium. They cut quickly, reliably, precisely and with a small kerf, thus contributing to future-proof, resource-saving production. The aluminium saw can be designed to suit the application, from simple automatic machines with chip conveyors to automated, interlinked saw cells with integrated chip extraction.

Cutting range 90° round

800 mm

Cutting range 90° flat

1,200 x 800 mm

Smallest dimension to be sawn round

50 mm

The innovative SpeedCutting technology of the HBM800-1201A high-speed saw series allows process-reliable cutting performance that was previously unthinkable. The HBM800-1201A shows its full potential especially when sawing tool steels to stainless steels or high-alloy materials such as Inconel or Titanium. The production bandsaw thus covers a wide range of applications in industry and the steel trade.

Cutting range 90° round

800 mm

Cutting range 90° flat

1,200 x 800 mm

Smallest dimension to be sawn round

50 mm

The aluminium bandsaw HBM800-1201ALU is specially designed for sawing ingots and billets made of aluminium or comparable non-ferrous metals such as magnesium. They cut quickly, reliably, precisely and with a small kerf, thus contributing to future-proof, resource-saving production. The aluminium saw can be designed to suit the application, from simple automatic machines with chip conveyors to automated, interlinked saw cells with integrated chip extraction.

Cutting range 90° round

860 mm

Cutting range 90° flat

860 x 860 mm

Smallest dimension to be sawn round

20 mm

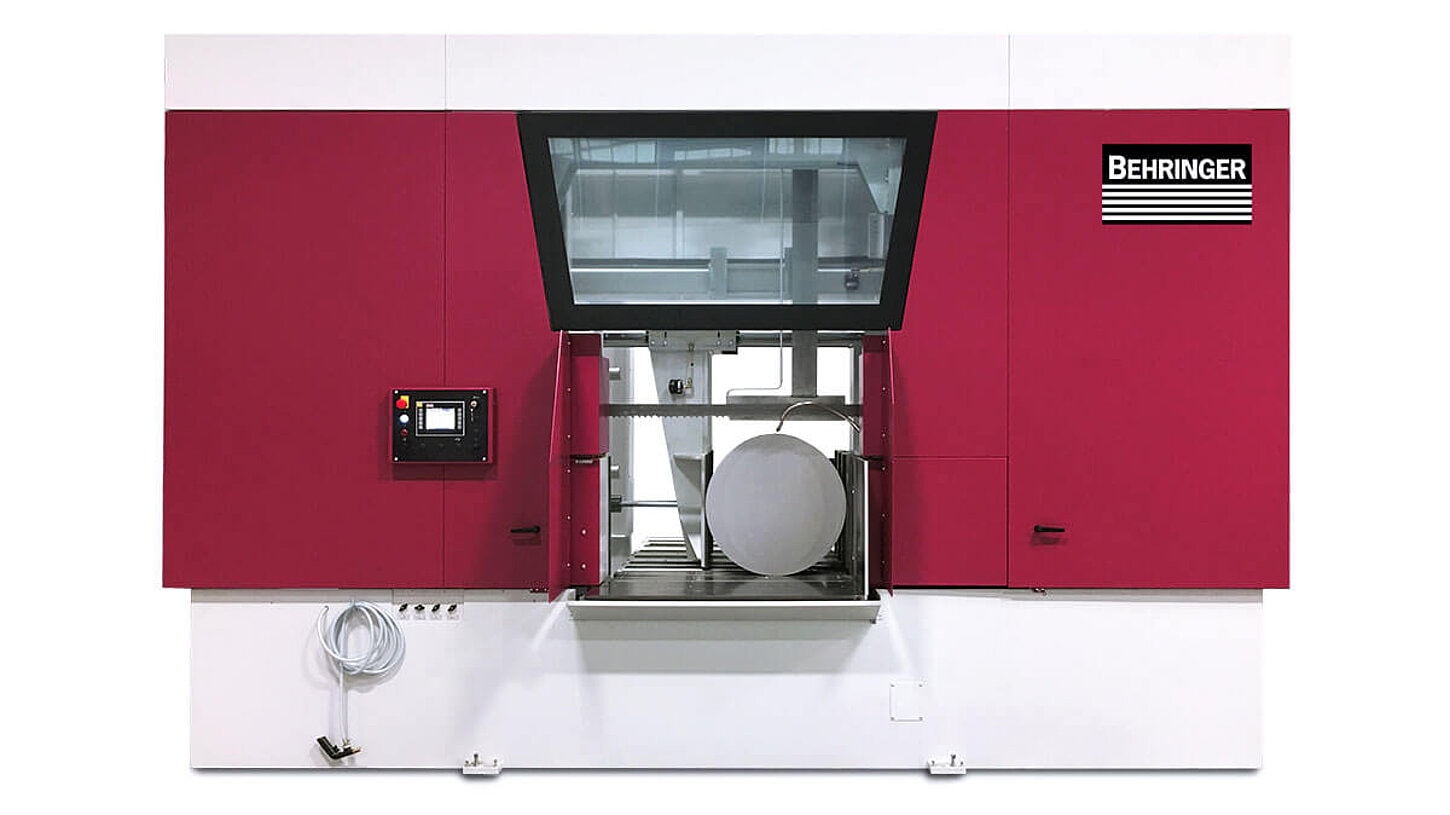

The high-performance automatic saw HBE860A Performance is designed for demanding use in the steel trade, manufacturing and metal production. Used for cutting large pipes or solid materials made of steel, plastic or high-alloy materials, they impress with precise and powerful cuts and easy material handling. The HBE860A Performance is extremely robustly built for rough operation. While fully enclosed and complying with current safety standards, the industrial saw offers good accessibility and special features for single cuts.

Cutting range 90° round

1,060 mm

Cutting range 90° flat

1,060 x 1,060 mm

Smallest dimension to be sawn round

60 mm

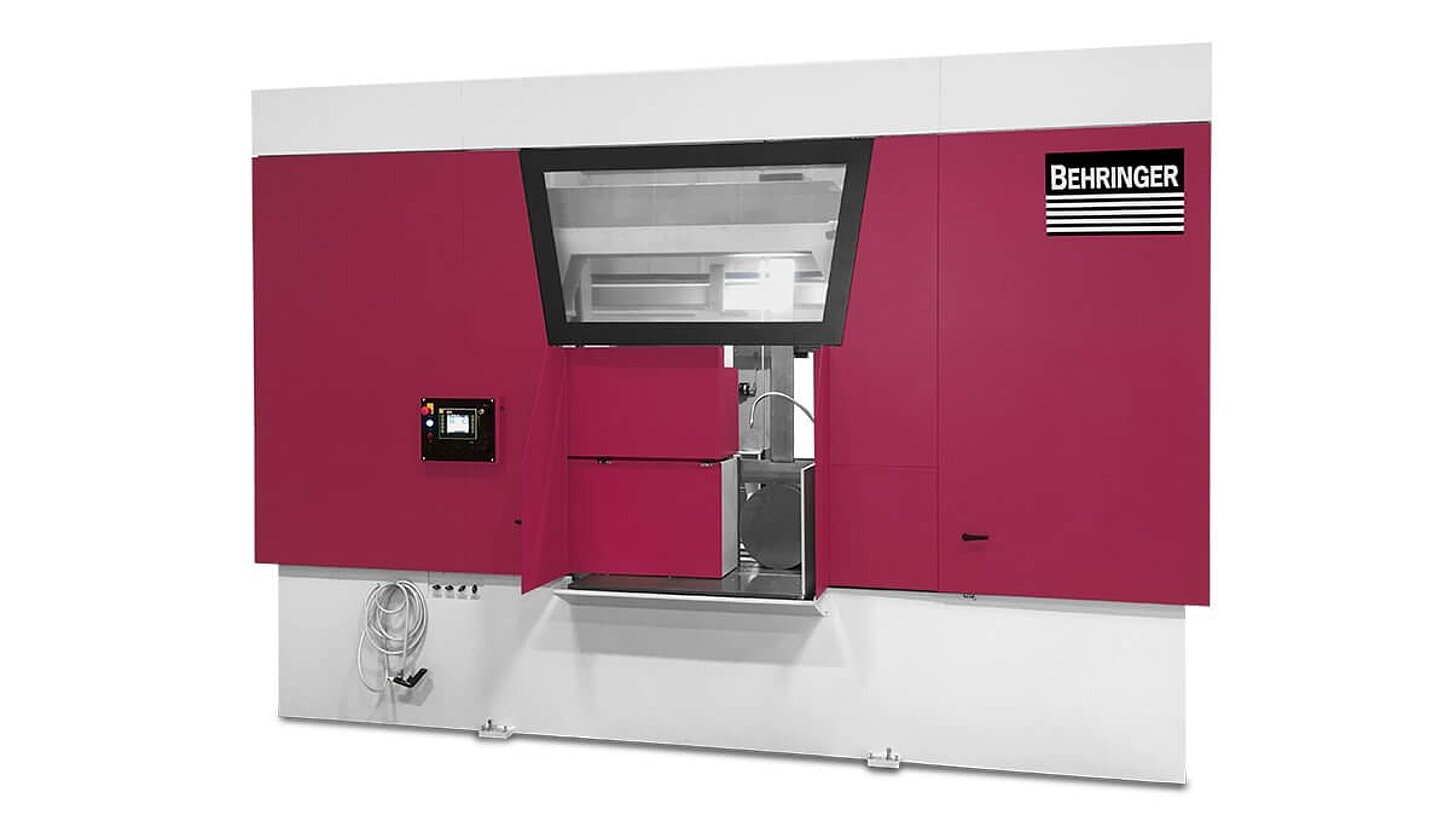

The high-performance automatic saw HBE1060A Performance is designed for demanding use in the steel trade, manufacturing and metal production. Used for cutting large pipes or solid materials made of steel, plastic or high-alloy materials, they impress with precise and powerful cuts and easy material handling. The HBE1060A Performance is extremely robustly built for rough operation. While fully enclosed and complying with current safety standards, the industrial saw offers good accessibility and special features for single cuts.

Cutting range 90° round

320 mm

Cutting range 90° flat

520 x 320 mm

75° Mitre left round / flat

320 mm / 520 x 320 mm

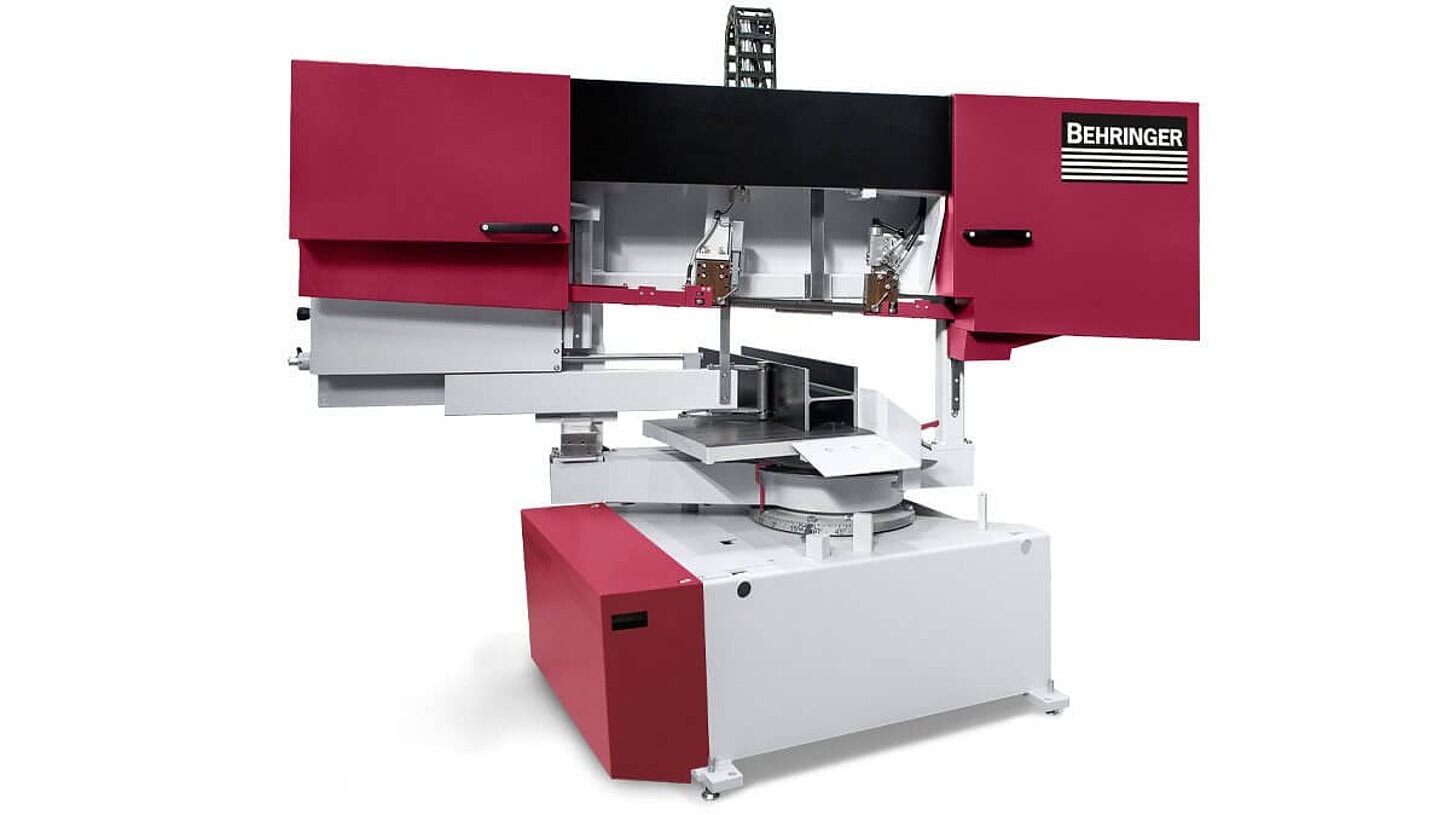

The horizontal mitre saw HBE320-523G perfectly combines the advantages of modern high-performance machines for individual sawing tasks with proven, unique Behringer features. And all this at an optimum price-performance ratio. With its extensive range of applications, the mitre saw reliably covers all the requirements of small and medium-sized businesses in metal construction, sectional steel trade, mechanical engineering and locksmith's shops. Thanks to the Behringer cutting pressure control, it is up to twice as fast as conventional mitre bandsaws in the same price range when cutting profiles and pipes, even in the basic version.

Cutting range 90° round

320 mm

Cutting range 90° flat

520 x 320 mm

75° Mitre left round / flat

320 mm / 520 x 320 mm

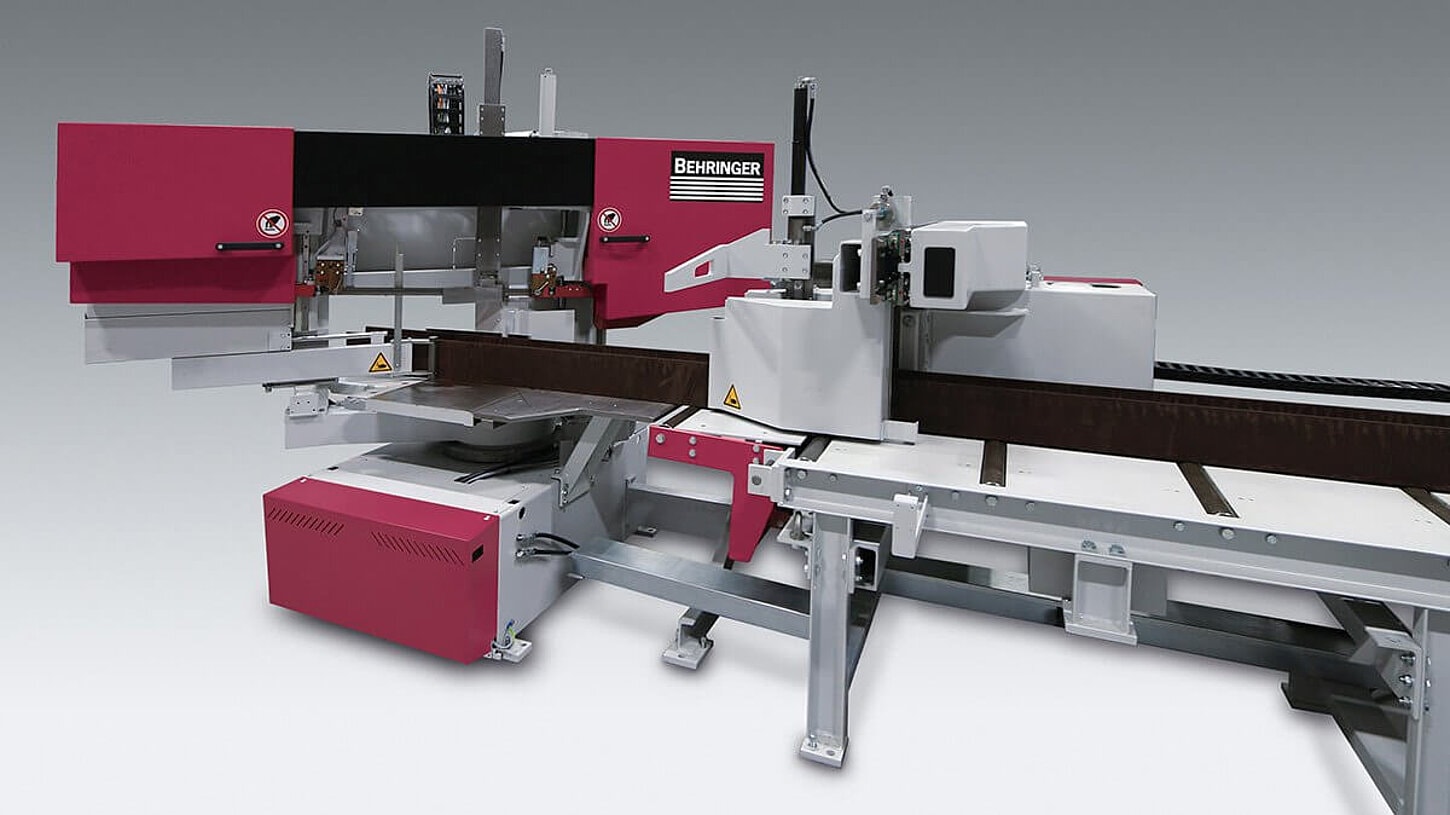

The automatic mitre band saw HBE320-523GA scores with high cutting performance, user-friendliness and precision. It cuts profile steels, tubes and solid materials made of steel or stainless steel at almost any angle. Thanks to the precise feed gripper and fast, NC-controlled cutting angle adjustment, it is fully automatic. The saw feed is carried out by means of a ball screw and servo motor, resulting in considerably shorter non-productive times and more precise saw feeds.

Cutting range 90° round

420 mm

Cutting range 90° flat

700 x 400 mm

75° Mitre left round / flat

400 mm / 700 x 400 mm

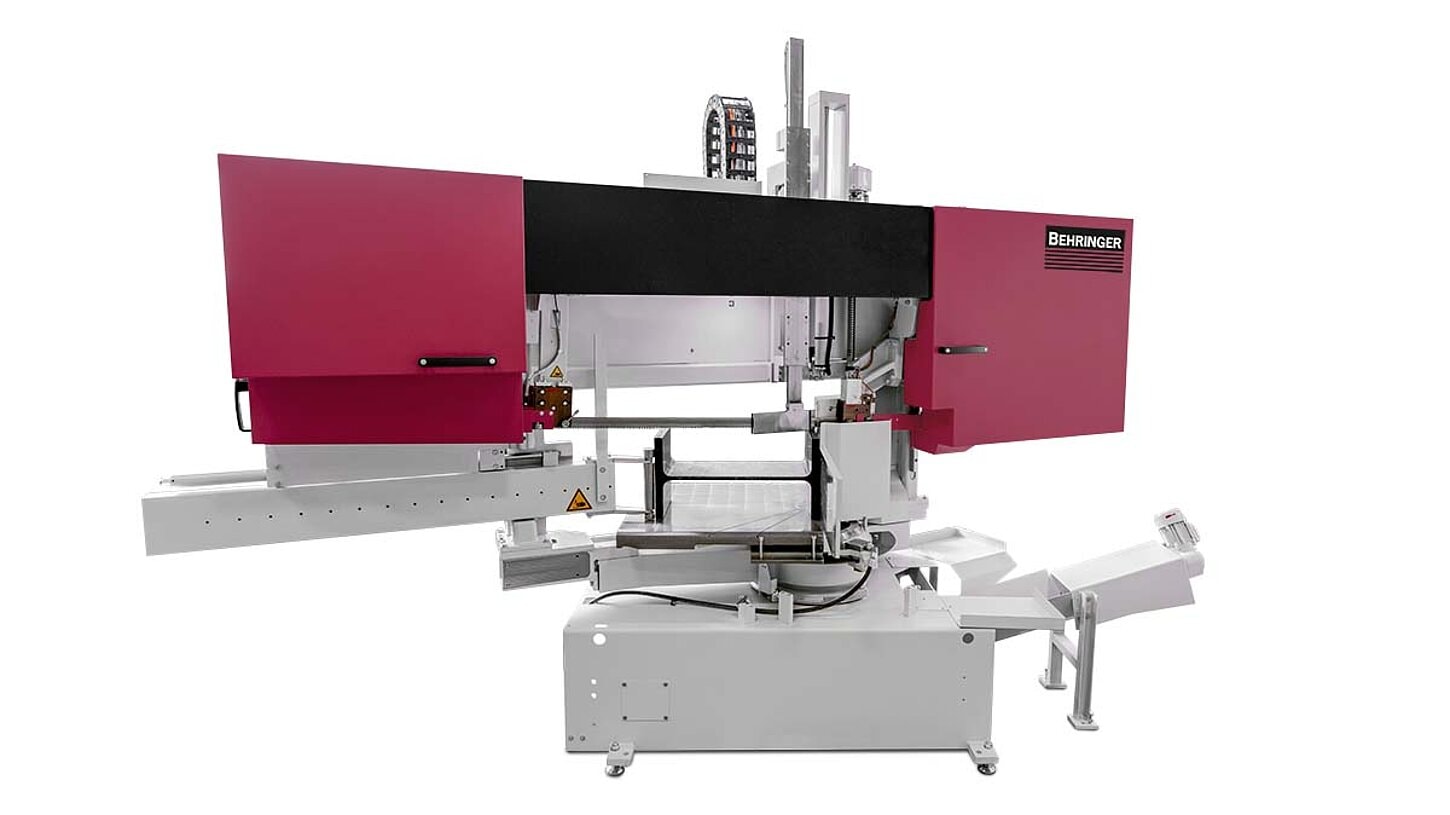

The horizontal mitre saw HBE420-723G perfectly combines the advantages of modern high-performance machines for individual sawing tasks with proven, unique Behringer features. And all this at an optimum price-performance ratio. With its extensive range of applications, the mitre saw reliably covers all the requirements of small and medium-sized businesses in metal construction, sectional steel trade, mechanical engineering and locksmith's shops. Thanks to the Behringer cutting pressure control, it is up to twice as fast as conventional mitre bandsaws in the same price range when cutting profiles and pipes, even in the basic version.

Cutting range 90° round

420 mm

Cutting range 90° flat

620 x 400 mm

75° Mitre left round / flat

400 mm / 620 x 400 mm

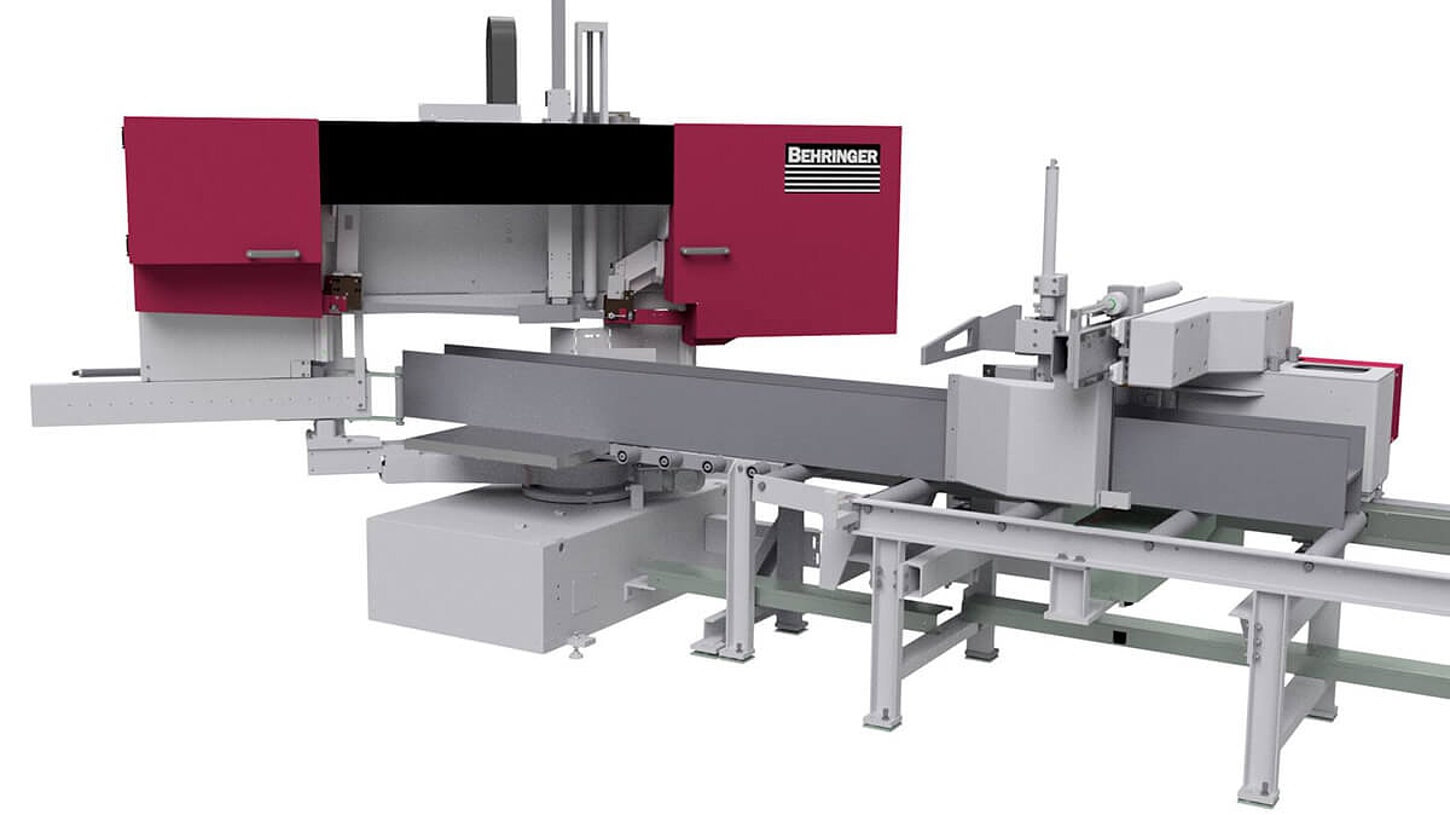

The automatic mitre band saw HBE420-723GA scores with high cutting performance, user-friendliness and precision. It cuts profile steels, tubes and solid materials made of steel or stainless steel at almost any angle. Thanks to the precise feed gripper and fast, NC-controlled cutting angle adjustment, it is fully automatic. Thanks to the standard saw feed with servo drive and unique Behringer cutting pressure control, it is up to twice as fast when sawing shaped steel as conventional saws at the same price level. With its powerful PC control, the computerized mitre saw is already prepared for the attachment of material handling equipment.

Cutting range 90° round

520 mm

Cutting range 90° flat

920 x 520 mm

75° Mitre left round / flat

520 mm / 920 x 520 mm

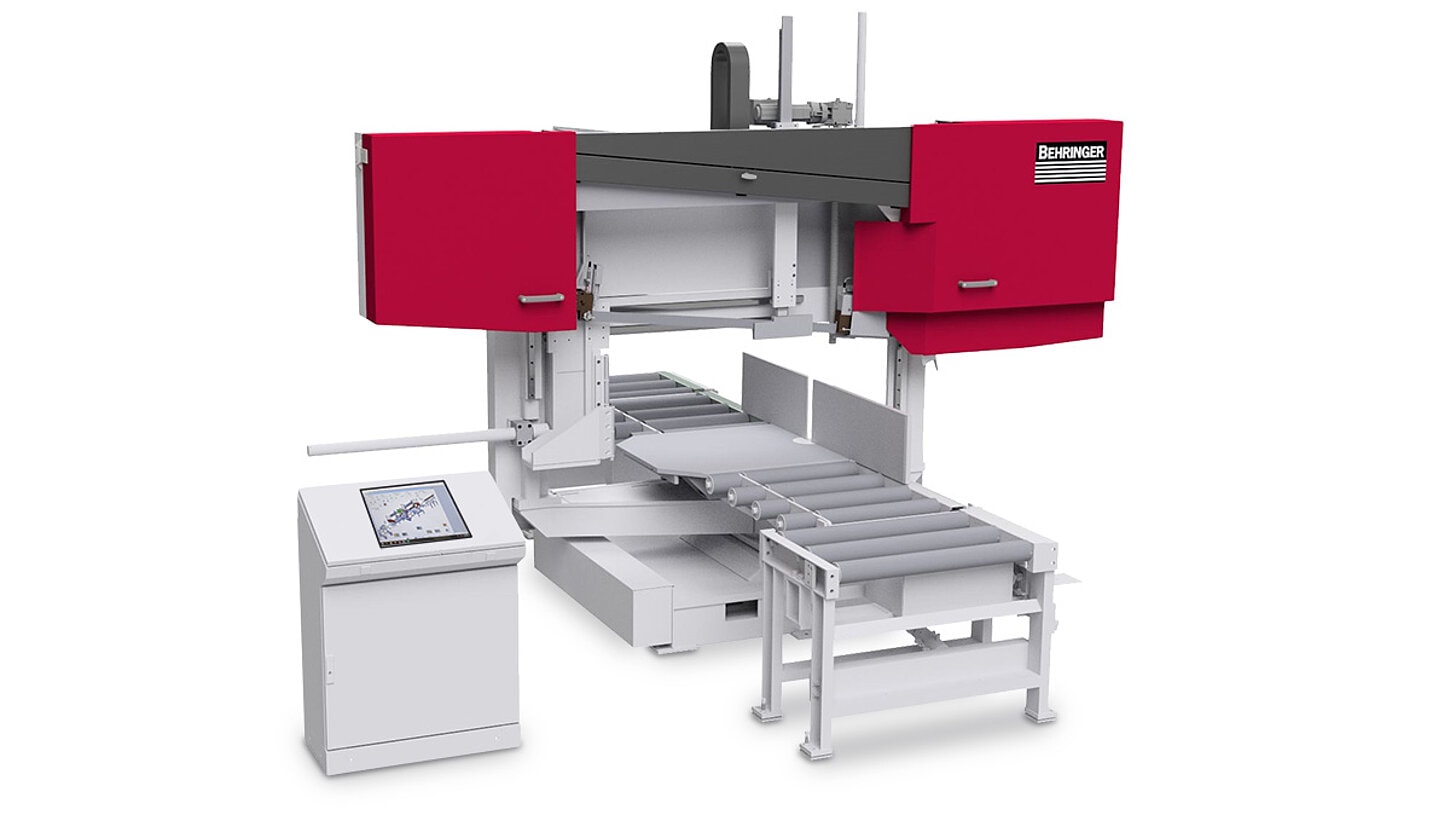

The high-performance horizontal mitre bandsaw HBE520-926G is designed for automatic sawing of structural steel, profiles and pipes. Features such as electronic mitre angle adjustment, saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are provided as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands tremendously. When processing large profiles, however, material handling is in addition to the cutting performance also a key factor in determining the system throughput. The HBE520-926G mitre saw is therefore consequently designed for low-operator use in automated sawing lines. Automatic material loading and discharge systems, pre- and post-buffer lines and an intelligent control system with nesting functionality cover all requirements.

Cutting capacity 90° round

520 mm

Cutting capacity 90° flat

820 x 520 mm

75° Miter left round / flat

520 mm / 820 x 520 mm

The high-performance automatic mitre band saw HBE520-926GA is designed for automatic sawing of structural steel, profiles and pipes. Features such as electronic mitre angle adjustment, saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are provided as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands tremendously. When processing large profiles, however, material handling is in addition to the cutting performance also a key factor in determining the system throughput. The HBE520-926GA computerized mitre saw is therefore consequently designed for low-operator use in automated sawing lines. Automatic material loading and discharge systems, pre- and post-buffer lines and an intelligent control system with nesting functionality cover all requirements.

Cutting range 90° round

610 mm

Cutting range 90° flat

1,250 x 610 mm

75° Mitre left round / flat

610 mm / 1,200 x 610 mm

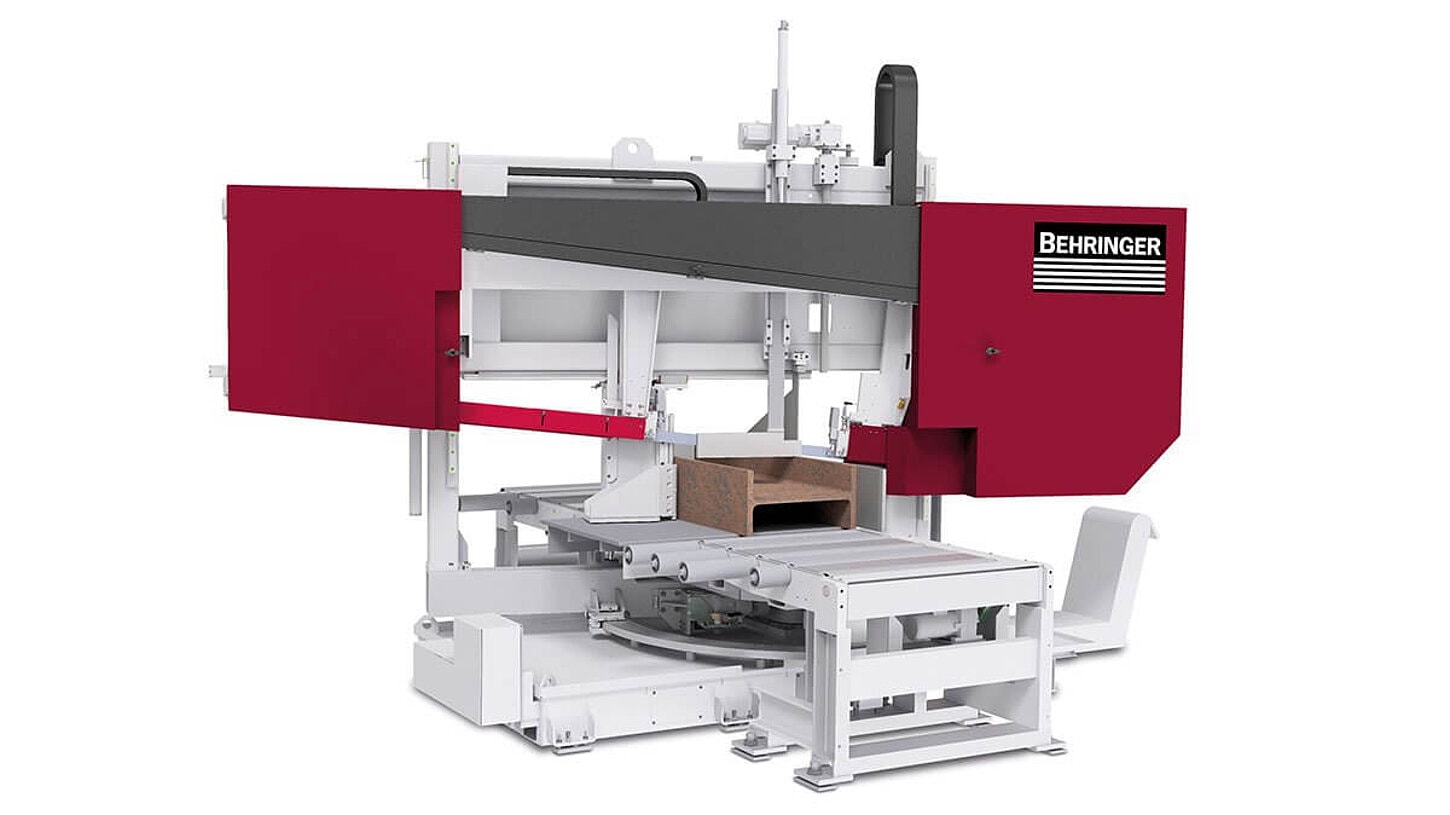

The high-performance horizontal mitre bandsaw HBE610-1256G is designed for automatic sawing of structural steel, profiles and pipes. Features such as electronic mitre angle adjustment, saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are provided as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands tremendously.

Cutting capacity 90° round

610 mm

Cutting capacity 90° flat

1.250 x 610 mm

75° Miter left round / flat

610 mm / 1.200 x 610 mm

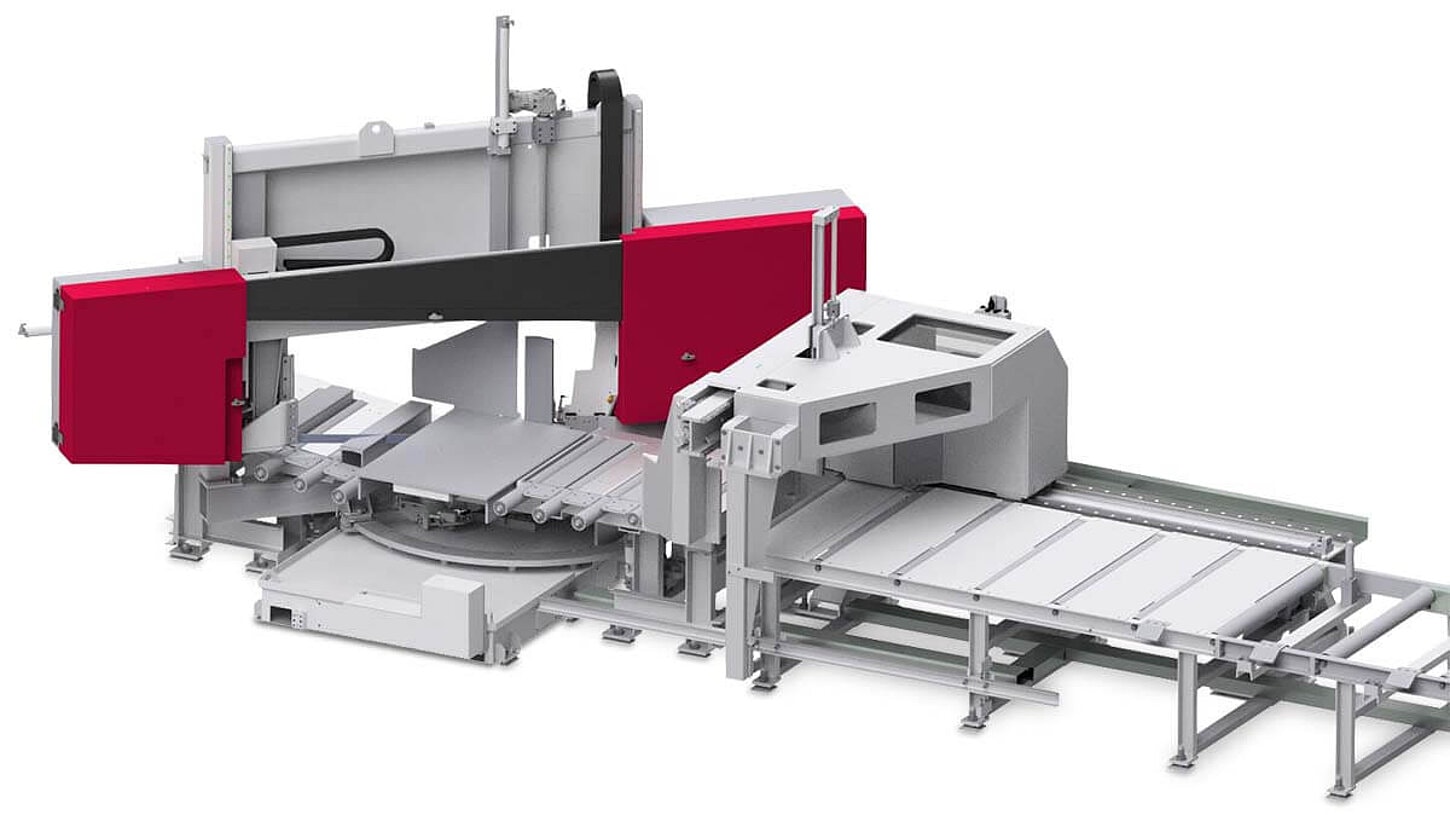

The high-performance automatic mitre band saw HBE610-1256GA is designed for automatic sawing of structural steel, profiles, and pipes. Features such as electronic mitre angle adjustment, saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment, and a robust double clamping vice are provided as standard. Its stable saw frame, inclined band wheels, and the use of vibration-damping cast components extend the service life of the saw bands tremendously. When processing large profiles, however, material handling is in addition to the cutting performance also a key factor in determining the system throughput. The HBE610-1256GA computerized mitre saw is therefore consequently designed for low-operator use in automated sawing lines. Automatic material loading and discharge systems, pre- and post-buffer lines and an intelligent control system with nesting functionality cover all requirements.

Maximum printing plate size flat W x H

520 x 300 mm

Minimum printing plate size flat W x H

100 x 100 mm

Maximum print height

400 mm

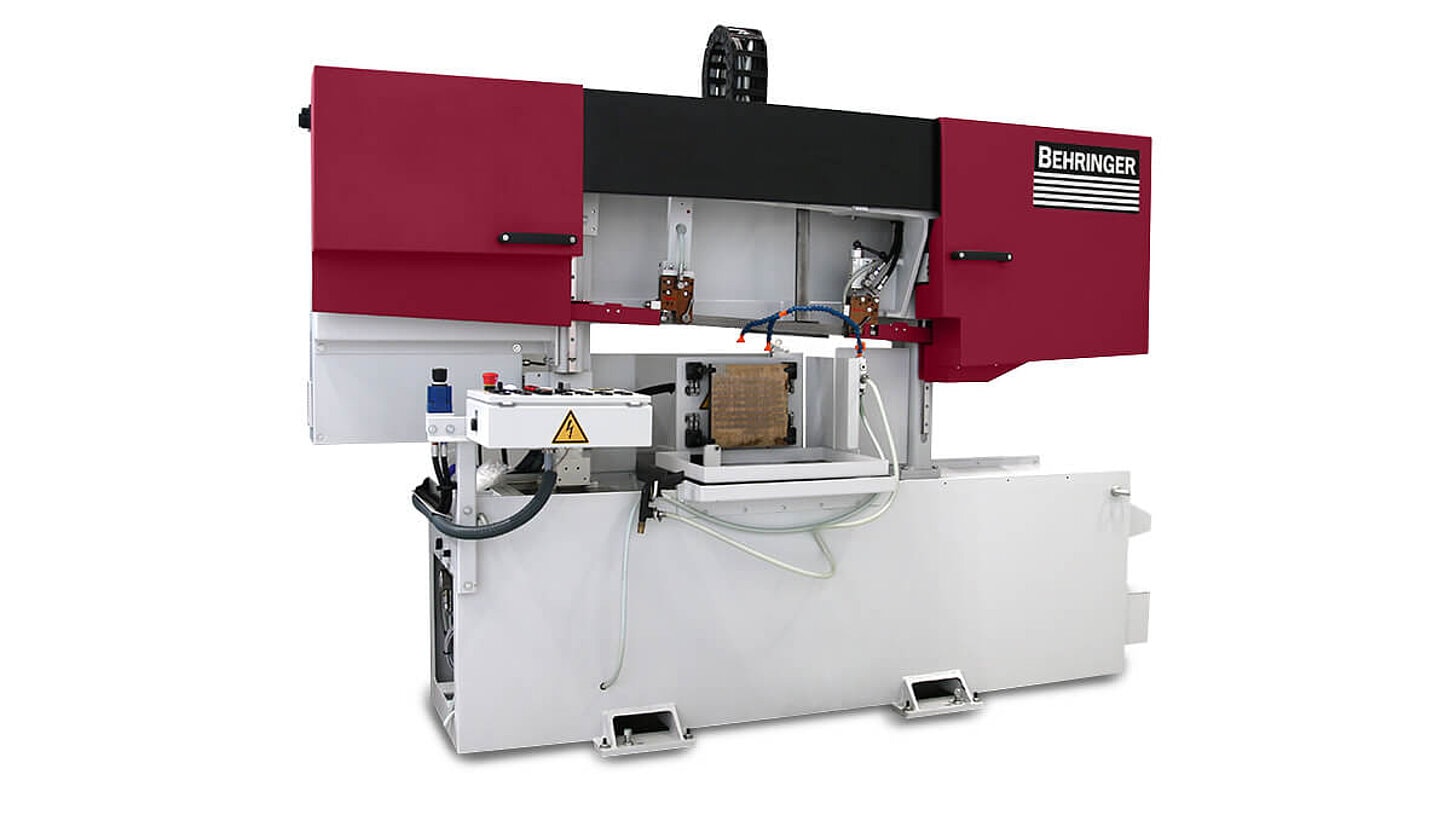

The horizontal bandsaw HBE320-523 3D is designed for sawing 3D printing plates in different sizes up to 520 x 300 mm. The individual production of the work holding according to customer requirements offers a high degree of flexibility when sawing 3D printing plates in different sizes and shapes. The zero-point stop system with alignment to the printing plate simplifies set-up operation and reduces sources of error. The fixture of the 3D saw is movable, ensuring easy loading and handling. In order to optimally adapt the sawing system to the specific process, Behringer offers various options such as a machine housing with extraction option, minimum quantity lubrication as well as individual clamping options according to customer requirements.

Maximum printing plate size flat W x H

850 x 650 mm

Minimum printing plate size flat W x H

100 x 100 mm

Maximum print height

650 mm

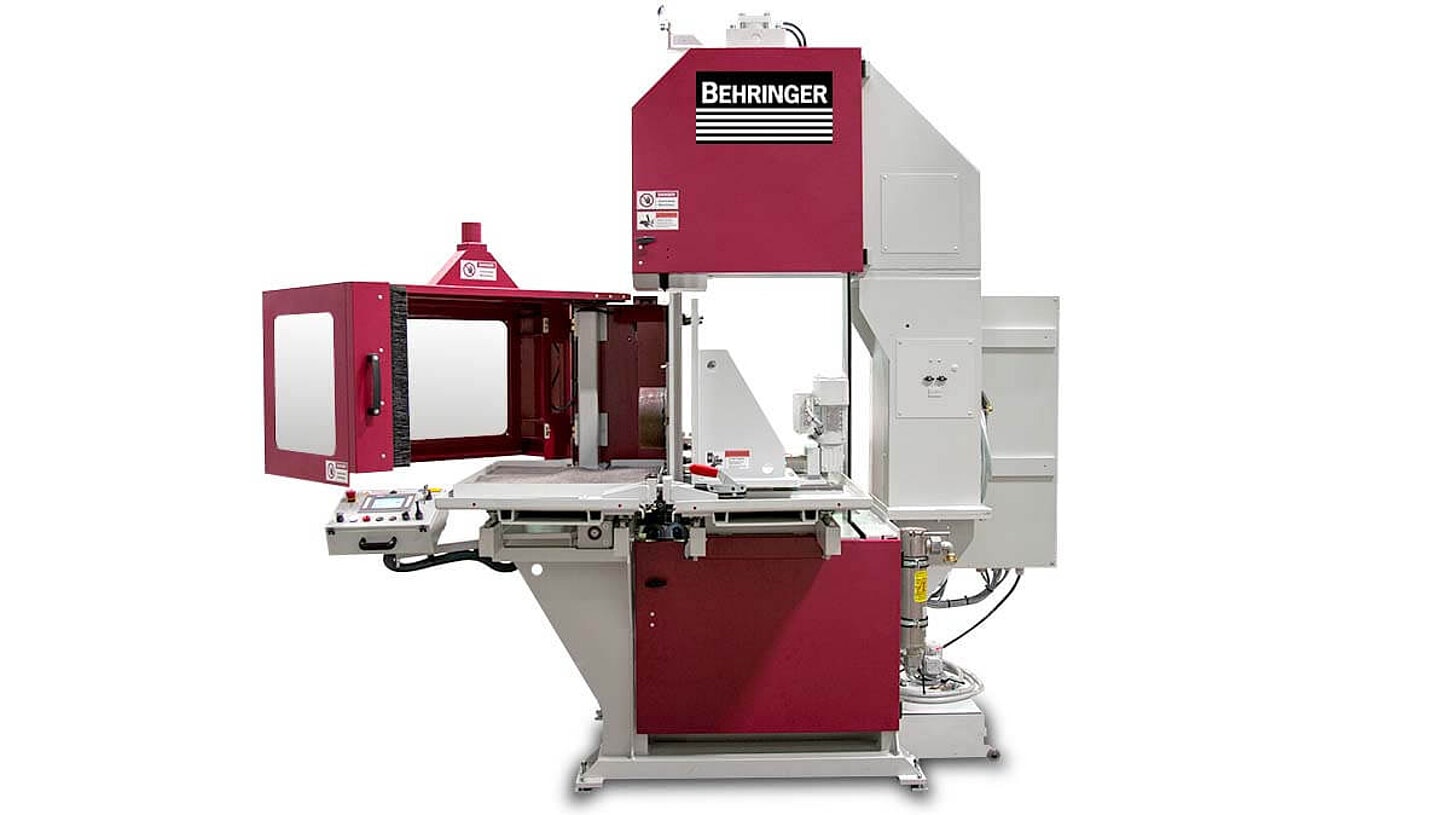

The vertical bandsaw LPS-T 3D was developed for sawing 3D printing plates in various sizes up to 850 x 650 mm. The individual production of the work holding according to customer requirements offers a high degree of flexibility when sawing 3D printing plates in different sizes and shapes. With its movable support table and NC-controlled workpiece holding, even heavy 3D printing plates can be easily loaded and unloaded using lifting gear. Behringer offers various options to optimally adapt the sawing system to the specific process, including a machine housing with extraction option, minimum quantity lubrication, and individual clamping options.

Maximum printing plate size flat W x H

1,200 x 1,200 mm

Minimum printing plate size flat W x H

200 x 200 mm

Maximum print height

650 mm

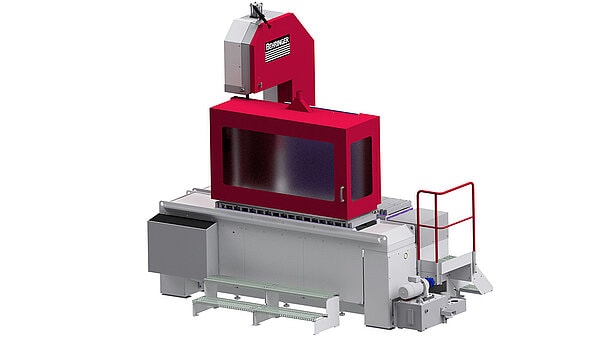

The vertical bandsaw LPS 3D 1200 was developed for sawing 3D printing plates in various sizes up to 1,200 x 1,200 mm. The individual production of the work holding according to customer requirements offers a high degree of flexibility when sawing 3D printing plates in different sizes and shapes. The 3D saw features an NC-controlled fixture for precisely positioning the base plate relative to the cut. The fixture can be swiveled 90° to allow for horizontal loading and unloading of the base plate. In order to optimally adapt the sawing system to the specific process, Behringer offers various options such as a machine housing with extraction option, minimum quantity lubrication as well as individual clamping options according to customer requirements.

Cutting range 90° round

240 mm

Cutting range 90° flat

280 x 210 mm

Cutting range 90° flat

260 x 240 mm

The mitre bandsaw of the SLB series from Behringer is a reliable partner for daily sawing tasks in the workshop and factory. The SLB230G is suitable for cutting tubes, profiles and solid material made of metal and comparable plastics. In addition to the attractive price, cutting precision, performance and reliability play the main role. Due to the simple operation and the small space requirement, the mitre saw is ideally suited for use in locksmiths, maintenance companies, blacksmiths and training workshops.

Cutting range 90° round

240 mm

Cutting range 90° flat

310 x 200 mm

Cutting range 90° flat

270 x 240 mm

The mitre bandsaw of the SLB series from Behringer is a reliable partner for daily sawing tasks in the workshop and factory. The SLB230DG is suitable for cutting tubes, profiles and solid material made of metal and comparable plastics. In addition to the attractive price, cutting precision, performance and reliability play the main role. Due to the simple operation and the small space requirement, the mitre saw is ideally suited for use in locksmiths, maintenance companies, blacksmiths and training workshops.

Cutting range 90° round

240 mm

Cutting range 90° flat

310 x 200 mm

Cutting range 90° flat

270 x 240 mm

The mitre bandsaw of the SLB series from Behringer is a reliable partner for daily sawing tasks in the workshop and factory. The SLB230DG-HA is suitable for cutting tubes, profiles and solid material made of metal and comparable plastics. In addition to the attractive price, cutting precision, performance and reliability play the main role. Due to the simple operation and the small space requirement, the mitre saw is ideally suited for use in locksmiths, maintenance companies, blacksmiths and training workshops.

Cutting range 90° round

260 mm

Cutting range 90° flat

370 x 260 mm

45° Miter right round

260 mm

The mitre bandsaw of the SLB series from Behringer is a reliable partner for daily sawing tasks in the workshop and factory. The SLB240G-HA is suitable for cutting tubes, profiles and solid material made of metal and comparable plastics. In addition to the attractive price, cutting precision, performance and reliability play the main role. Due to the simple operation and the small space requirement, the mitre saw is ideally suited for use in locksmiths, maintenance companies, blacksmiths and training workshops.

Cutting range 90° round

260 mm

Cutting range 90° flat

270 x 260 mm

Smallest dimension to be sawn round

10 mm

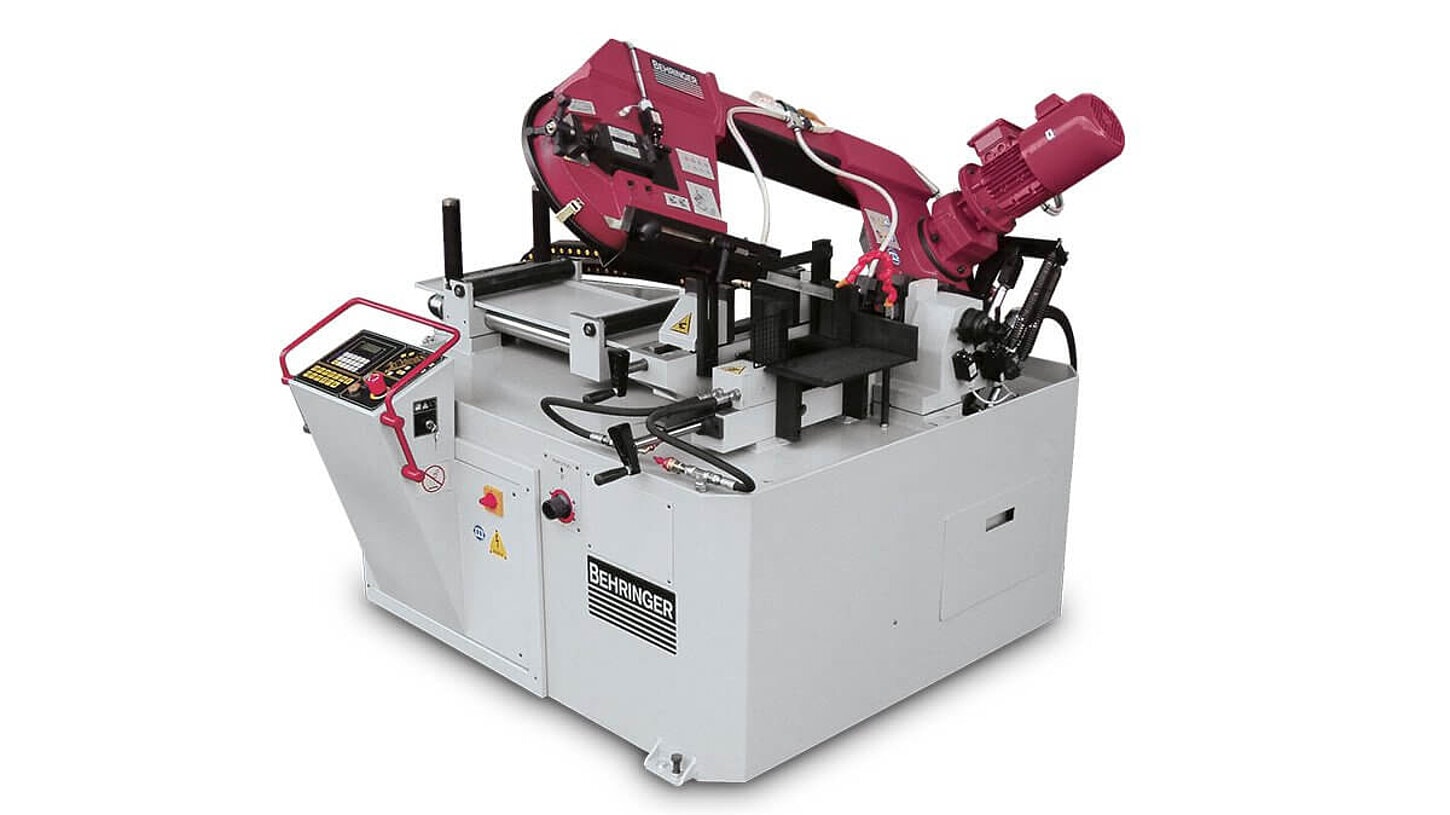

The SLB240A from Behringer is a fully automatic bandsaw designed for easy operation and maximum reliability. It is ideally suited for single and serial cuts of pipes, profiles and solid materials made of metal and comparable plastics. At the same time, it impresses with its precision and smooth running. In addition to its extensive basic equipment, the automatic bandsaw offers an attractive price/performance ratio. The small footprint makes it the ideal sawing machine in metalworking stores.

Cutting range 90° round

260 mm

Cutting range 90° flat

310 x 260 mm

45° Miter right round

260 mm

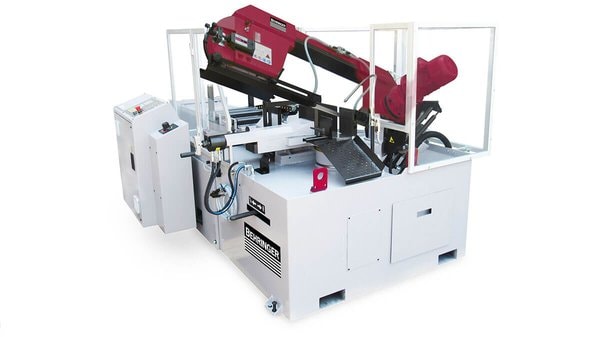

The SLB240AG from Behringer is a fully automatic bandsaw with mitre device designed for easy operation and maximum reliability. It is ideally suited for single and serial cuts of pipes, profiles and solid materials made of metal and comparable plastics. At the same time, it impresses with its precision and smooth running. In addition to its extensive basic equipment, the automatic bandsaw offers an attractive price/performance ratio. The small footprint makes it the ideal sawing machine in metalworking stores.

Cutting length

1,270 mm

Cutting width

620 mm

Cutting height

600 mm

With its moveable support table, the easy-to-use LPS-T vertical saw is the all-rounder when it comes to sawing small, compact parts and short sections. Those are typically needed in toolmaking. Sample cuts and notching work on difficult-to-machine material are also part of its repertoire. What is more: due to the compact dimensions the LPS-T table band saw can also be set up in areas with limited space.

Cutting length

1,500 mm

Cutting width

620 mm

Cutting height

600 mm

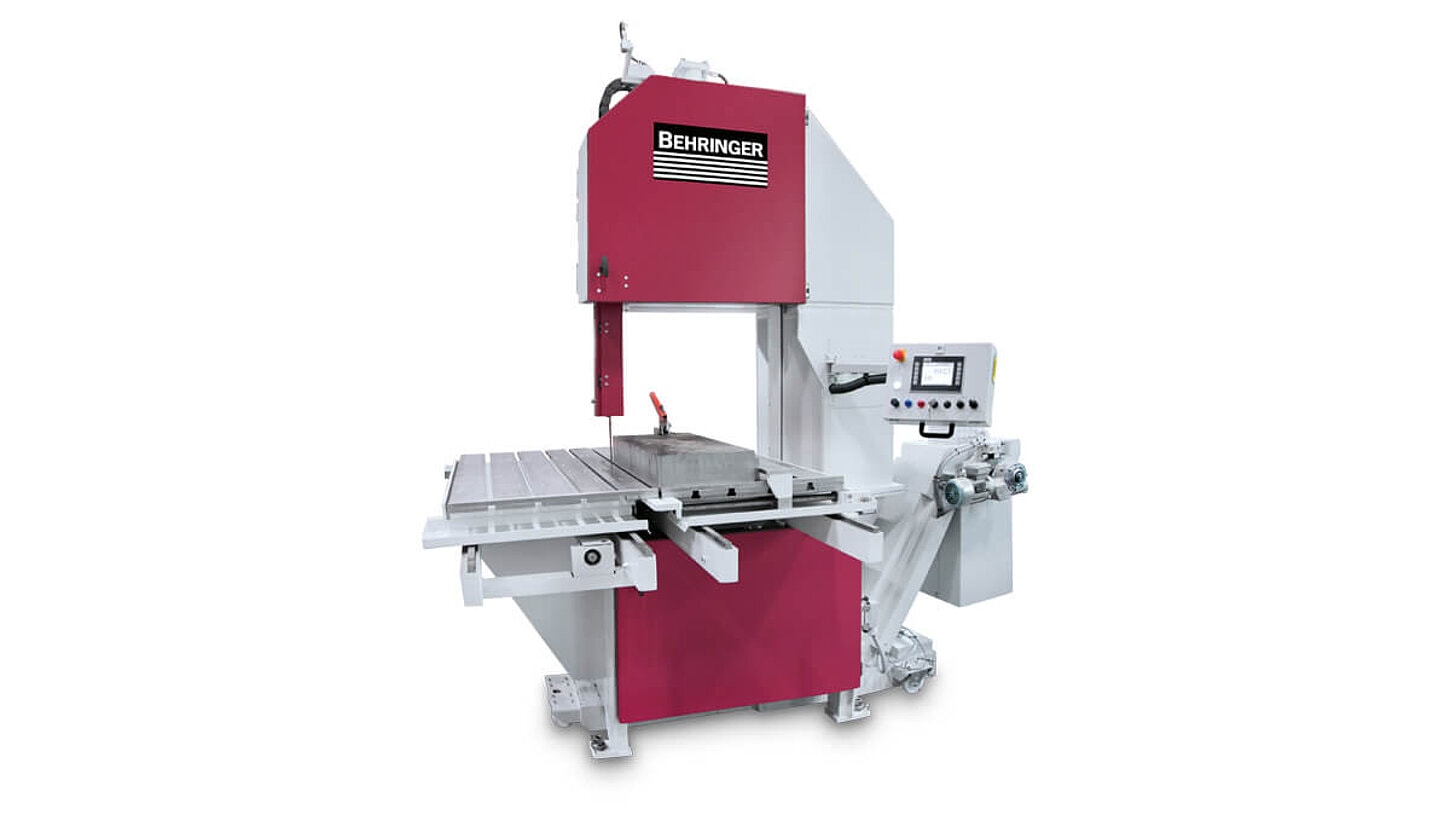

With its moveable support table, the easy-to-use LPS-T1500 vertical saw is the all-rounder when it comes to sawing small, compact parts and short sections. Those are typically needed i.e. in toolmaking. Sample cuts and notching work on difficult-to-machine material are also part of its repertoire. What is more: due to the compact dimensions the LPS-T1500 table band saw can also be set up in areas with limited space.

Cutting length

1,520 mm

Cutting width

620 mm

Cutting height

420 mm

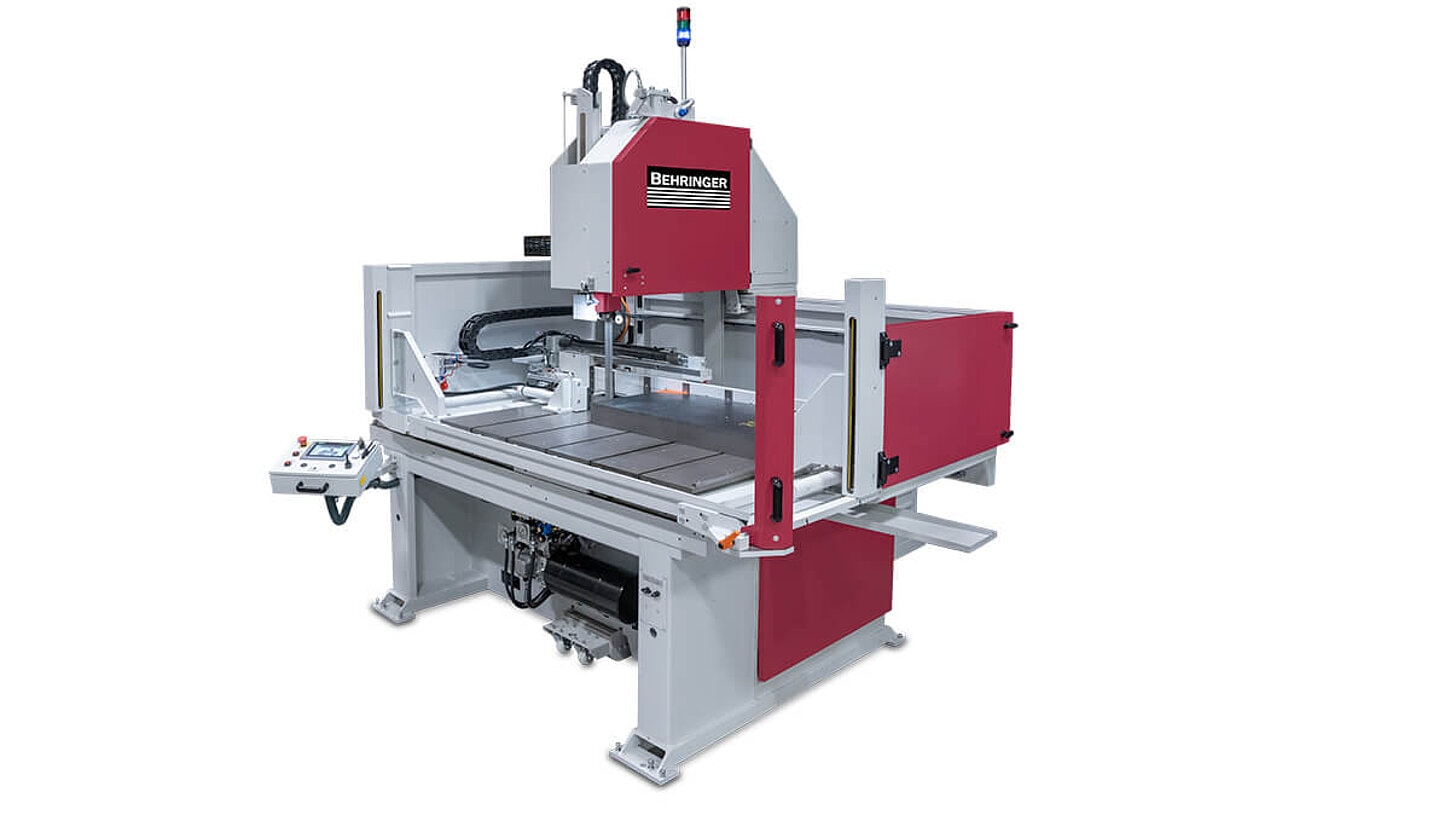

The automatic table band saw LPS-TA is the ideal solution from Behringer when it comes to fully automatic cutting of small plates and blocks. By producing flat and rectangular material from sheets, advantages can be achieved in material purchasing and significantly reduced storage costs. With its movable support table and automatic positioning device, it can be easily loaded and unloaded by crane. After clamping the material in the gripper and entering the plate dimensions, the table bandsaw sets itself up automatically. Even with difficult to cut materials, the automatic plate saw LPS-TA ensures precision and speedy work.

Cutting length

2,000 mm

Cutting width

680 mm

Cutting height

400 mm

The compact Behringer LPS40-2 block saw suits perfectly for contour- and allowance-optimized production of blanks from all plate dimensions and thicknesses. The plate saw has a robust design. It is flexible in use and can be perfectly adapted to your requirements. The good accessibility of the vertical bandsaw simplifies setup immensely. Thus the operator can reach all workpieces on the table by hand.

Cutting length

3,000 mm

Cutting width

1,200 mm

Cutting height

400 mm

Especially for sawing large plates and solid blocks, the vertical bandsaw LPS40-120-3 has an extremely robust design. It is characterized by outstanding precision and cutting performance, especially at sawing difficult to cut materials such as inconel or titanium. Thanks to its modular design, the block saw can be flexibly adapted to customer requirements.

Cutting length

4,100 mm

Cutting width

1,600 mm

Cutting height

400 mm

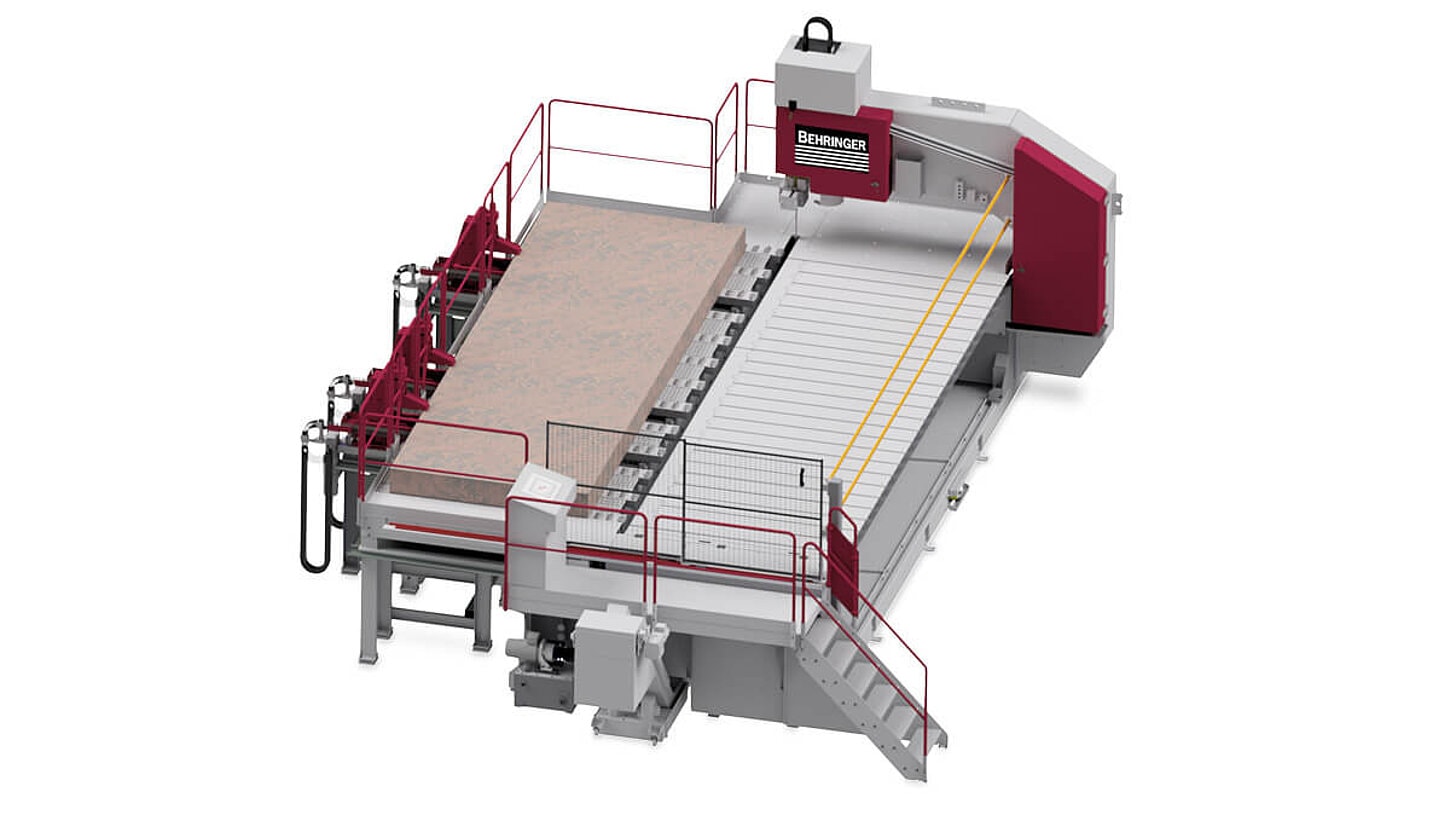

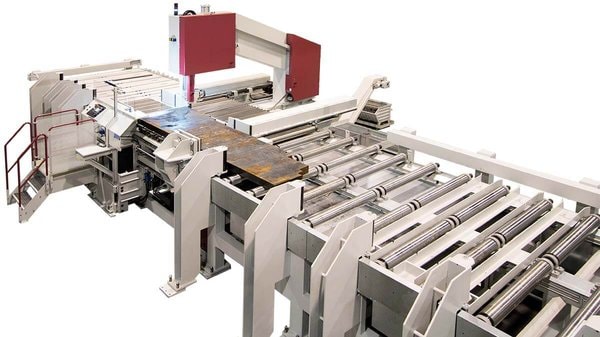

The LPS40-160-4A automatic plate saw is the ideal solution to produce parts from plates in one set-up. There is no need to rotate the plates manually. Thanks to the 90° rotating band guide, the vertical bandsaw produces both longitudinal cuts and sawing of finished parts without manual material handling. The precise servo-driven feeding gripper positions the heavy material precisely. The nesting functionality of the automatic vertical band saw reduces processing time and waste. The clear machine control visualizes the sawing tasks clearly and prevents errors.

Cutting range flat W x H

1,600 x 600 mm

Smallest dimension to be sawn flat W x H

500 x 20 mm

Shortest cutting length

15 mm

The automatic plate saw VPS60-160A is BEHRINGER's solution when it comes to fully automatic cross-cutting of large plates and blocks. The vertical arrangement of the saw band has clear advantages over the horizontal design, as the engagement length of the saw band is significantly shorter. As a result, the cross cutting plate saw offers significantly higher cutting capacities while at the same time reducing tool costs. Thanks to their robust basic design and high-performance components, the automatic plate saws of the VPS series are designed for demanding applications in the steel trade, industry and metal production. From non-ferrous metals and aluminum to simple work steels and difficult-to-cut materials such as Inconel or titanium. Their modular design allows the cross cutting plate saw to be individually adapted to the customer's application.

Cutting range 90° round

1,100 mm

Cutting range 90° flat

1,100 x 1,100 mm

Smallest dimension to be sawn round

100 mm

The large horizontal bandsaws with roller conveyor are the "great" allrounders from Behringer. Especially when cutting long solid materials - rolled or rough turned - or processing large pipes, these saws make for dramatic improvements in productivity. The good accessibility to all important components simplifies maintenance and servicing.

Cutting range 90° round

1,100 mm

Cutting range 90° flat

1,100 x 1,100 mm

Smallest dimension to be sawn round

100 mm

Behringer horizontal bandsaws in table design are ideal for use in forges, rolling mills and die casting factories, in steel finishing works and for tool and mold making. Their individually traversable material clamping vices and blade guide arms make these ideal for cutting bulky materials. The low table height makes this type of machine ideally suited for use on normal hall floor level.

Cutting range 90° round

1,100 mm

Cutting range 90° flat

1,100 x 1,100 mm

Smallest dimension to be sawn round

100 mm

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Cutting range 90° round

1,100 mm

Cutting range 90° flat

1,500 x 1,100 mm

Smallest dimension to be sawn round

400 mm

The large horizontal bandsaws with roller conveyor are the "great" allrounders from Behringer. Especially when cutting long solid materials - rolled or rough turned - or processing large pipes, these saws make for dramatic improvements in productivity. The good accessibility to all important components simplifies maintenance and servicing.

Cutting range 90° round

1,100 mm

Cutting range 90° flat

1,500 x 1,100 mm

Smallest dimension to be sawn round

400 mm

Behringer horizontal bandsaws in table design are ideal for use in forges, rolling mills and die casting factories, in steel finishing works and for tool and mold making. Their individually traversable material clamping vices and blade guide arms make these ideal for cutting bulky materials. The low table height makes this type of machine ideally suited for use on normal hall floor level.

Cutting range 90° round

1,100 mm

Cutting range 90° flat

1,500 x 1,100 mm

Smallest dimension to be sawn round

400 mm

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Cutting range 90° round

1,100 mm

Cutting range 90° flat

1,800 x 1,100 mm

Smallest dimension to be sawn round

400 mm

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Cutting range 90° round

1,100 mm

Cutting range 90° flat

1,800 x 1,100 mm

Smallest dimension to be sawn round

400 mm

Behringer horizontal bandsaws in table design are ideal for use in forges, rolling mills and die casting factories, in steel finishing works and for tool and mold making. Their individually traversable material clamping vices and blade guide arms make these ideal for cutting bulky materials. The low table height makes this type of machine ideally suited for use on normal hall floor level.

Cutting range 90° round

1,100 mm

Cutting range 90° flat

1,800 x 1,100 mm

Smallest dimension to be sawn round

400 mm

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Cutting range 90° round

1,100 mm

Cutting range 90° flat

2,100 x 1,100 mm

Smallest dimension to be sawn round

500 mm

The large horizontal bandsaws with roller conveyor are the "great" allrounders from Behringer. Especially when cutting long solid materials - rolled or rough turned - or processing large pipes, these saws make for dramatic improvements in productivity. The good accessibility to all important components simplifies maintenance and servicing.

Cutting range 90° round

1,100 mm

Cutting range 90° flat

2,100 x 1,100 mm

Smallest dimension to be sawn round

500 mm

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Cutting range 90° round

1,500 mm

Cutting range 90° flat

1,500 x 1,500 mm

Smallest dimension to be sawn round

400 mm

The large horizontal bandsaws with roller conveyor are the 'great' allrounders from Behringer. Especially when cutting long solid materials - rolled or rough turned - or processing large pipes, these saws make for dramatic improvements in productivity. The good accessibility to all important components simplifies maintenance and servicing.

Cutting range 90° round

1,500 mm

Cutting range 90° flat

1,500 x 1,500 mm

Smallest dimension to be sawn round

400 mm

Behringer horizontal bandsaws in table design are ideal for use in forges, rolling mills and die casting factories, in steel finishing works and for tool and mold making. Their individually traversable material clamping vices and blade guide arms make these ideal for cutting bulky materials. The low table height makes this type of machine ideally suited for use on normal hall floor level.

Cutting range 90° round

1,500 mm

Cutting range 90° flat

1,500 x 1,500 mm

Smallest dimension to be sawn round

400 mm

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Cutting range 90° round

1,500 mm

Cutting range 90° flat

1,800 x 1,500 mm

Smallest dimension to be sawn round

400 mm

The large horizontal bandsaws with roller conveyor are the 'great' allrounders from Behringer. Especially when cutting long solid materials - rolled or rough turned - or processing large pipes, these saws make for dramatic improvements in productivity. The good accessibility to all important components simplifies maintenance and servicing.

Cutting range 90° round

1,500 mm

Cutting range 90° flat

1,800 x 1,500 mm

Smallest dimension to be sawn round

400 mm

Behringer horizontal bandsaws in table design are ideal for use in forges, rolling mills and die casting factories, in steel finishing works and for tool and mold making. Their individually traversable material clamping vices and blade guide arms make these ideal for cutting bulky materials. The low table height makes this type of machine ideally suited for use on normal hall floor level.

Cutting range 90° round

1,500 mm

Cutting range 90° flat

1,800 x 1,500 mm

Smallest dimension to be sawn round

400 mm

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Cutting range 90° round

1,500 mm

Cutting range 90° flat

2,100 x 1,500 mm

Smallest dimension to be sawn round

500 mm

The large horizontal bandsaws with roller conveyor are the "great" allrounders from Behringer. Especially when cutting long solid materials - rolled or rough turned - or processing large pipes, these saws make for dramatic improvements in productivity. The good accessibility to all important components simplifies maintenance and servicing.

Cutting range 90° round

1,500 mm

Cutting range 90° flat

2,100 x 1,500 mm

Smallest dimension to be sawn round

500 mm

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Cutting range 90° round

1,800 mm

Cutting range 90° flat

1,800 x 1,800 mm

Smallest dimension to be sawn round

400 mm

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Cutting range 90° round

1,800 mm

Cutting range 90° flat

2,100 x 1,800 mm

Smallest dimension to be sawn round

500 mm

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Cutting range 90° round

2,100 mm

Cutting range 90° flat

2,100 x 2,100 mm

Smallest dimension to be sawn round

500 mm

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Cutting Range Flat 90°

170 x 100 mm

Cutting Range Flat 45°

120 x 100 mm

Cutting Range Flat 30°

85 x 100 mm

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles. The heart of the VMS circular saw is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface, the blade life and the service life of the saw.

Drive power

1.4 / 1.9 kW

RPM standard

17 / 34 - 34 / 68 min-1

RPM optional

10 / 20 / 40 / 80 min-1

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles. In addition to the automatic saw feed, the VMS 350 PV also offers pneumatic clamping of the material. The heart of the VMS circular saw unit is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface, the blade life and the service life of the saw.

Drive power

2.0 / 2.6 kW

RPM standard

17 / 34 - 34 / 68 min-1

RPM optional

8 / 16 / 32 / 64 min-1

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles. The heart of the VMS circular saw is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface, the blade life and the service life of the saw.

Drive power

2.0 / 2.6 kW

RPM standard

17 / 34 - 34 / 68 min-1

RPM optional

8 / 16 / 32 / 64 min-1

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles. In addition to the automatic saw feed, the VMS 370 PV also offers pneumatic clamping of the material.

Feeding length single stroke

800 mm

Drive power

2.0 / 2.6 kW

RPM standard

17 / 34 - 34 / 68 min-1

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles - both for series cuts and in manual operation. The VMS 370 A offers automatic operation with hydro-pneumatic saw feed and pneumatic material clamping. The system is operated via a user-friendly NC control.

Drive power

2.0 / 2.6 kW

RPM standard

17 / 34 - 34 / 68 min-1

RPM optional

8 / 16 / 32 / 64 min-1

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles. In addition to the hydraulic saw feed, the VMS 400 H also offers hydraulic clamping of the material. The heart of the VMS circular saw unit is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface, the blade life and the service life of the saw.

Feeding length single stroke

800 mm

Drive power

2.0 / 2.6 kW

RPM standard

17 / 34 - 34 / 68 min-1

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles - both for series cuts and in manual operation. The VMS 400 A offers automatic operation with hydraulic saw feed and hydraulic material clamping.

Cutting range 90° round

90 mm

Cutting range 90° square

75 x 75 mm

Smallest dimension to be sawn round

10 mm

The HCS 90 E industrial circular saw is a specialist for highest cutting performance and premium quality. Due to low cutting costs and tight tolerances, it quickly pays for itself in multi-shift operation. The basis of the extreme performance is the unique, extremely stable and solid construction with perfectly matched components and state-of-the-art drive technology.

Cutting range 90° round

105 mm

Cutting range 90° square

90 x 90 mm

Smallest dimension to be sawn round

20 mm

The HCS 100 MF industrial circular saw is a specialist for highest cutting performance and premium quality. Due to low cutting costs and tight tolerances, it quickly pays for itself in multi-shift operation. The basis of the extreme performance is the unique, extremely stable and solid construction with perfectly matched components and state-of-the-art drive technology. The innovative multi-fluid cooling concept multiplies the inherently high sawing performance of the HCS high speed circular saw by providing precise cooling when sawing high-alloyed stainless and tool steels, nickel-based alloys such as Inconel or Hastelloy as well as titanium alloys.

Cutting range 90° round

130 mm

Cutting range 90° square

110 x 110 mm

Smallest dimension to be sawn round

20 mm

The HCS 130 MF industrial circular saw is a specialist for highest cutting performance and premium quality. Due to low cutting costs and tight tolerances, it quickly pays for itself in multi-shift operation. The basis of the extreme performance is the unique, extremely stable and solid construction with perfectly matched components and state-of-the-art drive technology. The innovative multi-fluid cooling concept multiplies the inherently high sawing performance of the HCS high speed circular saw by providing precise cooling when sawing high-alloyed stainless and tool steels, nickel-based alloys such as Inconel or Hastelloy as well as titanium alloys.

Cutting range 90° round

152.4 mm

Cutting range 90° square

130 x 130 mm

Smallest dimension to be sawn round

10 mm

The high-performance automatic circular saws of the HCS-E series are specialists for highest cutting performance and premium quality, which quickly pay for themselves in multi-shift operation. The basis of the extreme performance is the unique, extremely stable and solid construction with perfectly matched components and state-of-the-art drive technology.

Cutting range 90° round

160 mm

Cutting range 90° square

140 x 140 mm

Smallest dimension to be sawn round

20 mm

The HCS 160 MF industrial circular saw is a specialist for highest cutting performance and premium quality. Due to low cutting costs and tight tolerances, it quickly pays for itself in multi-shift operation. The basis of the extreme performance is the unique, extremely stable and solid construction with perfectly matched components and state-of-the-art drive technology. The innovative multi-fluid cooling concept multiplies the inherently high sawing performance of the HCS high speed circular saw by providing precise cooling when sawing high-alloyed stainless and tool steels, nickel-based alloys such as Inconel or Hastelloy as well as titanium alloys.

Cutting range 90° round

190 mm

Cutting range 90° square

165 x 165 mm

Smallest dimension to be sawn round

40 mm (optional 20 mm)

The HCS 190 MF industrial circular saw is a specialist for highest cutting performance and premium quality. Due to low cutting costs and tight tolerances, it quickly pays for itself in multi-shift operation. The basis of the extreme performance is the unique, extremely stable and solid construction with perfectly matched components and state-of-the-art drive technology. The innovative multi-fluid cooling concept multiplies the inherently high sawing performance of the HCS high speed circular saw by providing precise cooling when sawing high-alloyed stainless and tool steels, nickel-based alloys such as Inconel or Hastelloy as well as titanium alloys.

Flat 90°

240 x 70 / 390 x 30 mm

Flat 45°

170 x 70 / 280 x 30 mm

Flat 30°

120 x 70 / 190 x 30 mm

Universal, precise and fast - these are the performance features of the PSU 450 H semi-automatic mitre saw for cutting metals. Designed for cutting profiles, pipes and solid material in metal and comparable materials, this machine is specifically designed to address the needs of locksmiths and metalworking shops. The mitre setting is equipped with convenient fixed stops at 90°, 45° and 30°. The 450 mm diameter saw blade used offers a wide cutting range - also for mitre cuts.

Drive power

3.0 / 3.6 kW

RPM standard

6 / 12 / 24 / 48 min-1

RPM optional

12 / 24 / 48 / 96 min-1

The automatic mitre circular saw PSU 450 M is a true all-rounder for cutting tubes, profiles, solids and angles. Impressive features include its high output, process reliability and simple handling. Its automatic mitre adjustment and servo motor-driven feed gripper make for extreme flexibility in this outstanding saw machine concept. Its modular structure allows the PSU 450 M to be combined with infeed magazines or disposal devices. The heart of the PSU mitre saw unit is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface and the blade life.

Drive power

7.1 kW

RPM

1 - 70 min-1

Saw blade diameter

450 mm

The flexible, PC-controlled high-performance mitre saw PSU 450 A combines economical cuts and high plant output with outstanding operating convenience. Its high level of automation and its flexibility cover a wide application spectrum. The mitre circular saw is capable of processing profiles and pipes as well as solid material of different dimensions in fully automatic operation. Servo-motorised axes for material positioning, mitre angle adjustment and the optional disposal gripper ensure maximum system throughput. The discharge device grips the part to be sawn, and once the cut is complete deposits it out of the machine area in a freely programmable position. Thanks to its modular design, the mitre circular saw PSU 450 A can be combined with infeed magazines or disposal equipment to suit the application.

Cutting range round

150 mm

Cutting range square

140 x 140 mm

Cutting range flat

400 x 30 mm

The PSU 450 GS is a circular saw specially designed for sawing curved tubes such as mufflers, hydroforming or exhaust pipes. Standardised mounts and their flat material table enable individual workpiece fixtures to be accepted. The saw entry and exit point can be freely adjusted accordingly. The standard two-hand operation allows comfortable and safe working without disturbing mechanical guards. The heart of the PSU tube cutting saw is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface and the blade life.

Cutting range round

165 mm

Smallest dimension to be sawn round

10 mm

Drive power

11 kW

The BTS 460 NC is a carbide circular saw specially designed for sawing curved tubes such as mufflers, hydroforming or exhaust pipes. Standardised mounts and their flat material table enable individual workpiece fixtures to be accepted. The saw entry and exit point can be freely adjusted accordingly. The standard two-hand operation allows comfortable and safe working without disturbing mechanical guards. The heart of the BTS 460 NC is the high-performance sawing unit from the HCS series and powerful servo axes for saw feed and material clamping. This overall concept offers a powerful and low-vibration sawing process, which ensures a good cutting surface, long saw blade life and a long service life of the saw.

Cutting range 90° round

175 mm

Cutting range 90° flat

235 x 135 mm

Cutting range 90° square

155 x 155 mm

Excellent surface quality, high output, short rest piece lengths and careful material handling - the VA-L series aluminium saws set standards in all areas worldwide. With its pneumatic clamping devices and servo-driven saw feed system, it is unsurpassed in terms of cutting performance and precision.

Cutting range 90° round

10 - 200 mm

Cutting range 90° flat

290 x 165 mm

Cutting range 90° square

170 x 170 mm

Excellent surface quality, high output, short rest piece lengths and careful material handling - the VA-L series aluminium saws set standards in all areas worldwide. With its servo-driven material clamping devices and servo-driven saw feed system, it is unsurpassed in terms of cutting performance and precision.

Cutting range 90° round

10 - 240 mm

Cutting range 90° flat

325 x 180 mm

Cutting range 90° square

200 x 200 mm

Excellent surface quality, high output, short rest piece lengths and careful material handling - the VA-L series aluminium saws set standards in all areas worldwide. With its servo-driven material clamping devices and servo-driven saw feed system, it is unsurpassed in terms of cutting performance and precision.

Capacity

1,250 x 600 mm

Raw material length

30 m

Max linear load

500 kg/m

The HDX machining centre from Vernet Behringer is the fastest drilling, milling and marking machine on the market. Thanks to its 3 independent machining spindles, H, U and angle profiles as well as flat steel and rectangular tubes can be machined on 3 sides simultaneously. It is even possible to add one more milling spindle to process sections on 4 sides. The HDX profile machining centers can be combined with bandsaws and/or shearing units. These universal lines offer great flexibility combined with very high productivity.

Capacity

1,000 x 450 mm

Raw material length

Up to 24 m

Max linear load

500 kg/m

The Vernet Behringer HDV lines are specially designed for drilling, milling and marking rectangular tubes and profiles from 40 x 40 mm to 1,000 x 450 mm section, on 3 or even 4 sides. They can be combined with a band saw and/or a shearing unit. These lines offer a unique versatility on the market.

Raw material length

up to 24 m

Punching power web

75 tons

Punching power flange

55 tons

The Vernet Behringer MAPS is the most productive machine on the market for marking, punching and shearing H, U, angle and flat profiles. It is designed for medium to large batch sizes with a high automation level.

Recommended usable section

400 x 400 mm

Y-axis stroke

500 mm

Z-axis stroke

500 mm

The Vernet Behringer HDL provides economic drilling, milling, marking and taping. Henceforth, preliminary manual measuring, tracing and scoring of holes positions are not required anymore. When the machine is operating, the next program can be prepared at the same time. It is also possible to work in multi-parts mode. The HDL also offers marking (part identification and layout marking) with our exclusive V-scoring fast marking system. Compared to conventional marking systems, we double the marking speed without noise emissions. And with the lowest operating costs, as we do not need compressed air. Thanks to the secure clamping with repositionable pneumatics clamps also milling operations are possible. The operating software is user friendly and provides a powerful part import as well as programming of new parts with 3D visualization.

Capacity min

40 x 4 mm (option 35 x 3 mm)

Capacity max

90 x 9 mm

The Vernet Behringer angle line VPX94 covers numerous machining operations: marking, punching, shearing and notching. This highly productive machine combines high work rates and great ease of use. The VPX94 is ideally suited for manufacturers of lattice towers and structural steel builders seeking maximum productivity for smaller angles up to 90 x 9 mm.

Capacity min

40 x 4 mm

Capacity max

160 x 16 mm

Punching power

75 tons

The Vernet Behringer angle line VPX166 covers numerous machining operations: marking, punching, drilling, shearing and notching. This highly productive machine combines high work rates and great ease of use. The VPX166 is ideally suited for manufacturers of lattice towers and structural steel builders seeking maximum productivity for angles up to 160 x 16 mm.

Capacity min

50 x 5 mm

Capacity max

250 x 25 mm

Punching Ø

6

The Vernet Behringer angle line VPX256S covers numerous machining operations: marking, punching and shearing. This highly productive machine combines high work rates and great ease of use. The VPX256S is ideally suited for manufacturers of lattice towers and structural steel builders seeking maximum productivity for angles up to 250 x 25 mm.

Capacity min

50 x 5 mm

Capacity max

250 x 25 mm

Shearing power

600 tons

The Vernet Behringer angle line VPX250-XD covers numerous machining operations: marking, drilling, milling and shearing. This highly productive machine combines high work rates and great ease of use. The VPX250-XD is ideally suited for manufacturers of lattice towers and structural steel builders seeking maximum productivity for angles up to 250 x 25 mm.

Plate dimensions

3,000 x 1,500 mm

Min. / max. thickness (depending on plasma source)

5 - 30 / 45 mm

Max. weight

1 tons or 350 kg/m

The Vernet Behringer MAG315 plate machining machine offers precise and fast machining in a passthrough operation. It combines marking, carbide drilling and milling, holes deburring (lower and upper faces) and high definition plasma cutting (straight and bevel cuts). The MAG315 also offers a high level of automation with automatic part handling and automatic or semi-automatic plate loading.

Plate dimensions

4,000 x 2,000 mm

Min. / max. thickness (depending on plasma source)

5 - 30 / 50 mm

Max. weight

2 tons or 650 kg/m

The Vernet Behringer MAG420 plate machining machine offers precise and fast machining in a passthrough operation. It combines marking, carbide drilling and milling, holes deburring (lower and upper faces) and high definition plasma cutting (straight and bevel cuts). The MAG420 also offers a high level of automation with automatic part handling and automatic or semi-automatic plate loading.

Plate dimensions

6,000 x 2,000 mm

Min. / max. thickness

5 - 30 / 50 mm

Max. weight

4 tons or 650 kg/m

The Vernet Behringer MAG620 plate machining machine offers precise and fast machining in a passthrough operation. It combines marking, carbide drilling and milling, holes deburring (lower and upper faces) and high definition plasma cutting (straight and bevel cuts). The MAG620 also offers a high level of automation with automatic part handling and automatic or semi-automatic plate loading.

Plate dimensions

6,000 x 2,500 mm

Min. / max. thickness (depending on plasma source)

5 - 30 / 60 mm

Max. weight

5 tons or 800 kg/m

The Vernet Behringer MAG625 plate machining machine offers precise and fast machining in a passthrough operation. It combines marking, carbide drilling and milling, holes deburring (lower and upper faces) and high definition plasma cutting (straight and bevel cuts). The MAG625 also offers a high level of automation with automatic part handling and automatic or semi-automatic plate loading.

Plate dimensions

12,000 x 2,500 mm

Min. / max. thickness (depending on plasma source)

5 - 30 / 60 mm

Max. weight

7 tons or 800 kg/m

The Vernet Behringer MAG1225 plate machining machine offers precise and fast machining in a passthrough operation. It combines marking, carbide drilling and milling, holes deburring (lower and upper faces) and high definition plasma cutting (straight and bevel cuts). The MAG1225 also offers a high level of automation with automatic part handling and automatic or semi-automatic plate loading.

Plate dimensions

1,000 x 650 mm

Max. thickness of processed plate

40 mm

Max. weight

200 kg

The plate processing machine FG1000 from Vernet Behringer allows drilling (both HSS and carbide), milling (long holes, big diameters…), marking and holes deburring of gusset and connecting plates up to 1,000 x 650 x 40 mm.

Plate dimensions

2,000 x 1,000 mm

Max. thickness of processed plate

60 mm

Max. weight

600 kg

The plate processing machine FG2000 from Vernet Behringer allows drilling (both HSS and carbide), milling (long holes, big diameters…), marking and holes deburring of gusset and connecting plates up to 2,000 x 1,000 x 60 mm.
